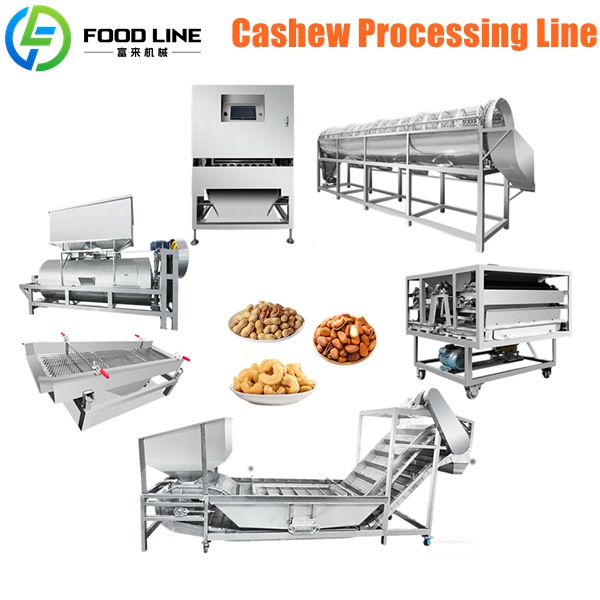

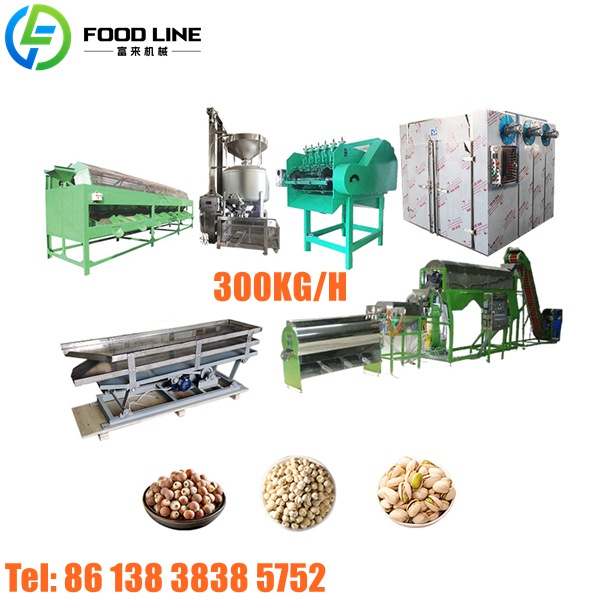

This 300 kg/h cashew processing line combines grading, steaming, automatic shelling, shell-kernel separation, drying, and secondary separation equipment. As a cashew processing machine manufacturers, we can configure the equipment according to raw cashew nut size, processing capacity and factory space. Contact us! WhatsApp/Tel: 86 138 3838 5752
This equipment sorts cashews of various sizes. It categorizes the cashews into different groups based on size, facilitating the subsequent processing of the raw material.
Output
400kg/h
Power
1.1kw
Size
3.6*0.9*1.6m
Weight
700kg
Contact Us! WhatsApp/Tel: +86 138 3838 5752

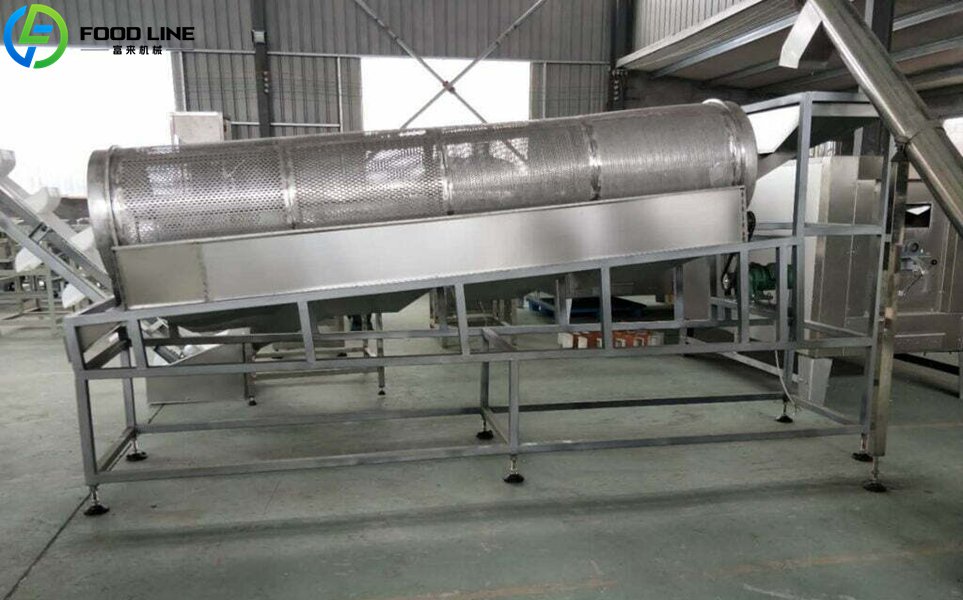

cashew grading device

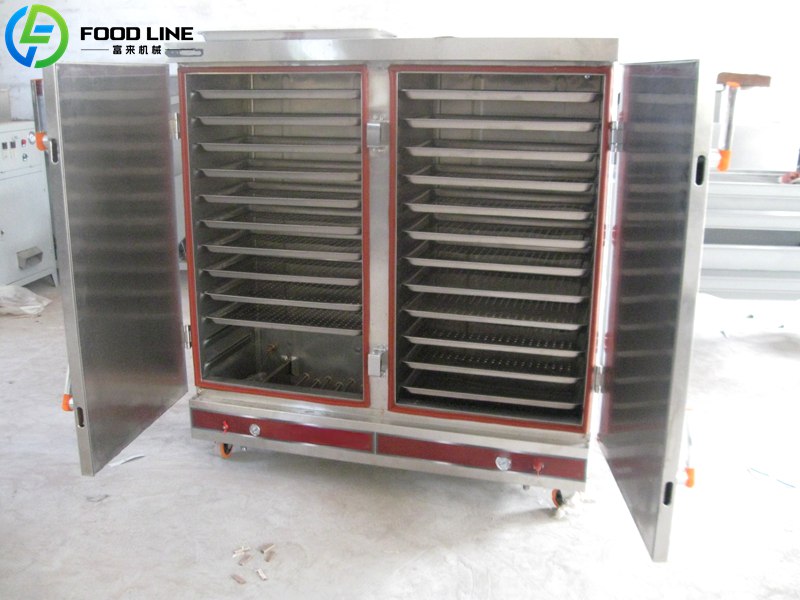

Cashew Steam Cooker
Steaming and boiling equipment heats raw cashews to soften their shells, facilitating the subsequent shelling process.
Output
200-300kg/h
Power
24kw
Size
1.5*0.6*1.55m
Weight
150kg
Type
Gas type
Gas Consumption
4 kg/hour
Plates
24 plates
Contact Us! WhatsApp/Tel: +86 138 3838 5752
cashew steaming pot

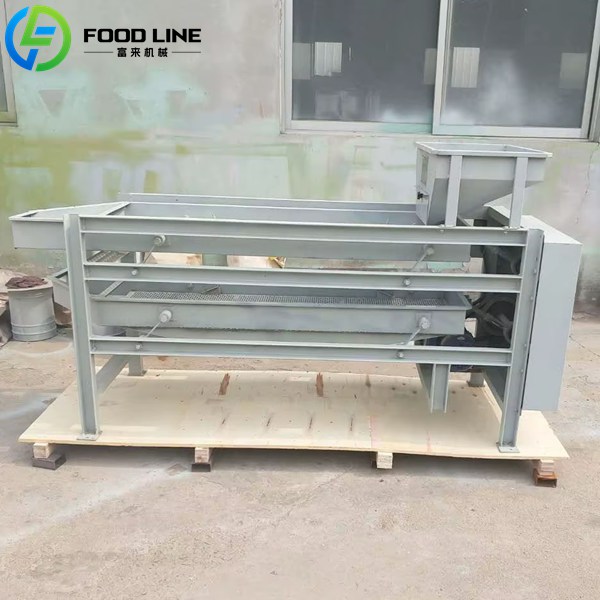

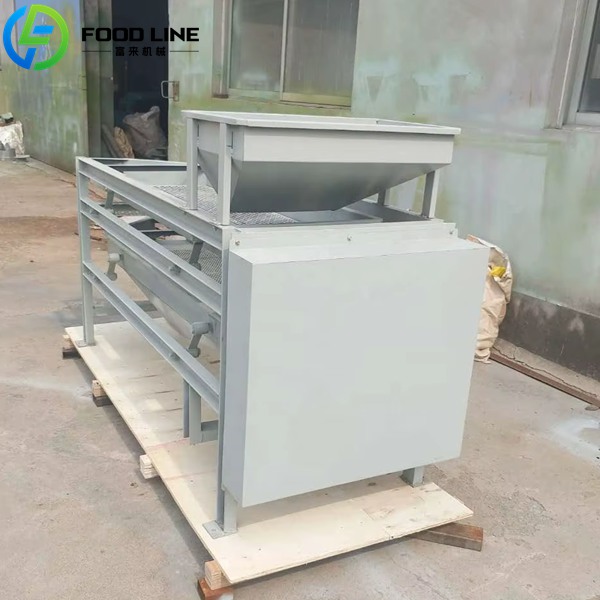

Shell-Kernel Screening Machine
The product resulting from the shelling process consists of whole kernels, broken kernels, shell fragments, and other impurities. The equipment employs a three-stage screening process to separate the fragments and cashew kernels.

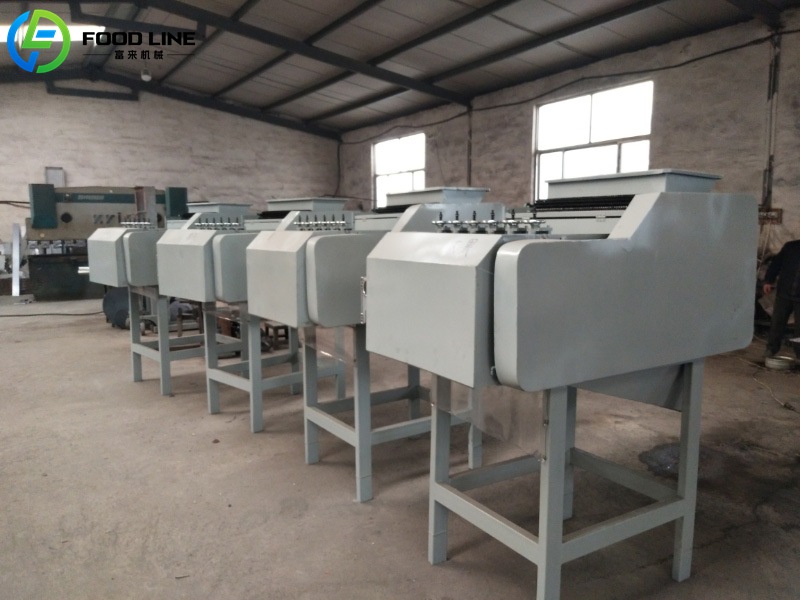

The automatic shelling process utilizes mechanical positioning, clamping, and cutting to open the cashew shells. The shelling rate reaches approximately 90%–95%. With proper operation, the rate of unopened shells is controlled at around 3%, and the kernel breakage rate is less than 5%–10%.
Output
260-320 KG
Capacity per Cycle
10 nuts
Dimensions (L×W×H)
1.45 × 1.15 × 1.55 M
Total Weight
Approx. 780 KG
Variable Speed Motor
2.2kw
Voltage
380/220V ± 5% (optional)
Frequency
50HZ
Shelling Rate
90-95%
Unshelled Rate
3%
Breakage Rate
Less than 5-10%
Contact Us! WhatsApp/Tel: +86 138 3838 5752
automatic cashew shelling equipment

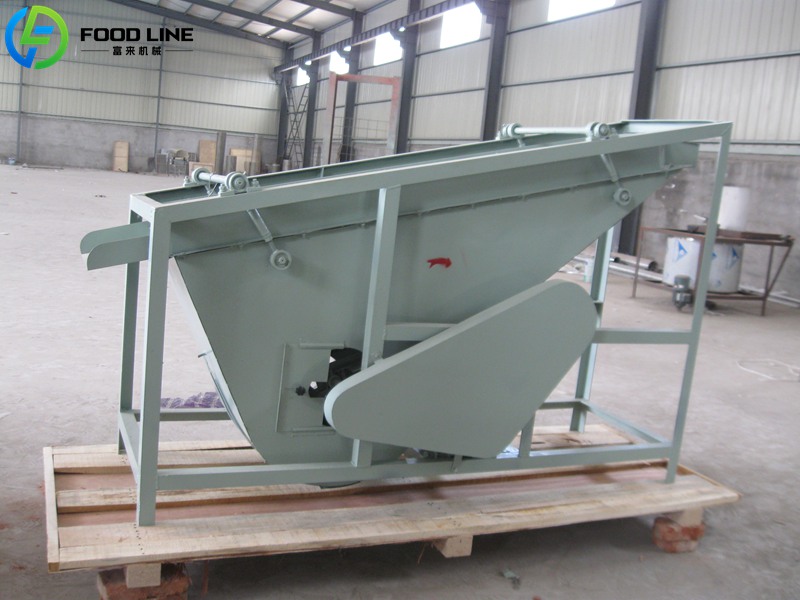

Cashew Air Separator
The air separator uses airflow to separate shell fragments from cashew kernels. Air separation serves as a method for removing lightweight impurities.
Size
1.5*0.7*2.5 m
Fan Power
2.2kw
Voltage / Frequency
380V / 50Hz
Size Note
Depends on equipment configuration
Contact Us! WhatsApp/Tel: +86 138 3838 5752
cashew air separator device

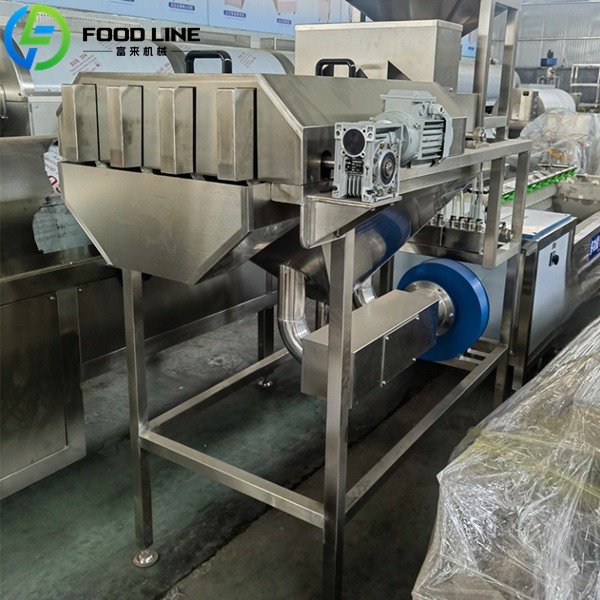

Cashew Sorting Machine
The secondary sorting machine utilizes adjustable rollers to separate shell fragments from kernels, thereby enhancing the purity of the processed kernels.
Motor Power
0.55kw
Voltage
380V
Frequency
50Hz
Size
1.6*1.15*0.85m
Output
300–400kg/h
Weight
180kg
Contact Us! WhatsApp/Tel: +86 138 3838 5752

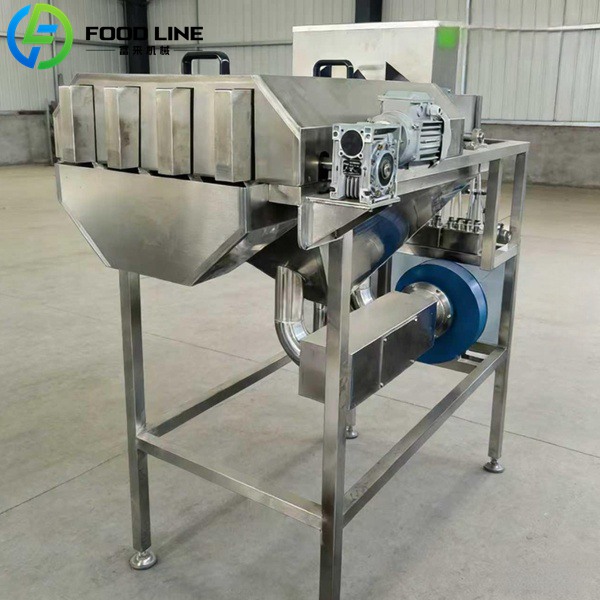

cashew secondary separator device
cashew secondary separator
Features of the Cashew Processing Machine
Comprehensive Processing: This production line handles everything from raw nut grading to kernel separation, minimizing manual labor. Cashew peeling equipment can be added based on your facility layout and budget requirements.
Automatic Shelling: The shelling machine utilizes mechanical positioning and cutting technology to perform the shelling process, thereby increasing the shelling rate.
Multi-stage separation: The production line incorporates various processes, including screening, air separation, and secondary separation, with specific separation methods applied according to the material characteristics.
Adjustable parameters: Each piece of equipment can be adjusted based on raw material size and processing requirements, making the system suitable for different batches of cashews.
FAQ
Why does the production line require a grading machine?
It sorts cashews based on size. Selecting cashews of uniform size facilitates the subsequent shelling process.
How does the cashew shelling machine handle cashews of different sizes?
This model is designed to process medium-sized nuts. To handle large or small nuts, simply adjust the gap between the cutting blades.
Can I purchase a specific piece of equipment individually?
Yes. You can choose individual machines to upgrade an existing plant or configure a complete cashew processing system for a new project.
If you are launching a new project or upgrading a production line, please let us know your target capacity, the condition of the cashews, available factory space, desired final products, and budget. Our product team will recommend the right models and provide customized solutions. All our equipment comes with a one-year warranty. Feel free to contact us for a quote—we are available online 24/7! WhatsApp/Tel: 86 138 3838 5752
