Our ice block maker machine adopts mature refrigeration technology and strict quality control for stable operation and long service life. If you need a cost-effective ice-making solution, contact us now for a free quote—we will tailor the best plan for you. Contact us for a free quote!
Parameters of Ice Block Machine
| Model | Length (mm) | Width (mm) | Height (mm) | Net Weight (kg) |
|---|---|---|---|---|
| FL-300 | 1180 | 780 | 1480 | 275 |
| FL-1000 | 1780 | 980 | 1780 | 440 |
| FL-5000 | 2480 | 1480 | 2180 | 790 |
| FL-10000 | 3180 | 1780 | 2480 | 1180 |
Features of Block Ice Production Machine
- Durable industrial compressors: Our ice block maker machines use high-quality Copeland compressors. These compressors have strong cooling capacity, low energy consumption, and low noise. The compressors can operate stably at temperatures up to 45°C
- Environmentally Friendly Refrigerant: This machine uses R404A refrigerant, which is environmentally friendly and highly efficient. It can quickly lower the temperature to -20℃, achieving rapid ice making.
- Intelligent Control System: Equipped with an intelligent PLC control system and touch screen. Easy to operate, requiring no professional expertise. Simply set the parameters to achieve automatic ice making and defrosting, greatly improving work efficiency.
- Protective Devices and Evaporator: This ice block maker machine is equipped with high-pressure and low-pressure protection devices designed to protect the compressor and extend the equipment’s lifespan. The evaporator is made of high-quality aluminum molds, offering excellent heat transfer performance and producing uniform, transparent ice.
Advantages of Block Ice Maker
- High-efficiency ice making: A single ice maker can produce 1 ton of ice per day under standard operating conditions. Intelligent ice melting technology reduces the de-icing time to 90 seconds, which is 30% more efficient than traditional models.
- Easy to Maintain: This product features a modular design for easy disassembly and maintenance. In high-usage environments, weekly cleaning is recommended. In hard water areas, the evaporator should be inspected every 1-2 weeks.
- Premium Ice Cubes: High hardness (Shore75), low impurity content (≤0.5mg/L),Meets food-grade standards and is safe for consumption and food preservation.
- Strong Adaptability: It can operate normally in ambient temperatures of 5℃-50℃ and water supply temperatures of 5℃-30℃. Suitable for various regions and climates, meeting the application needs of different areas.
Where Can We Use Ice Block Machine?

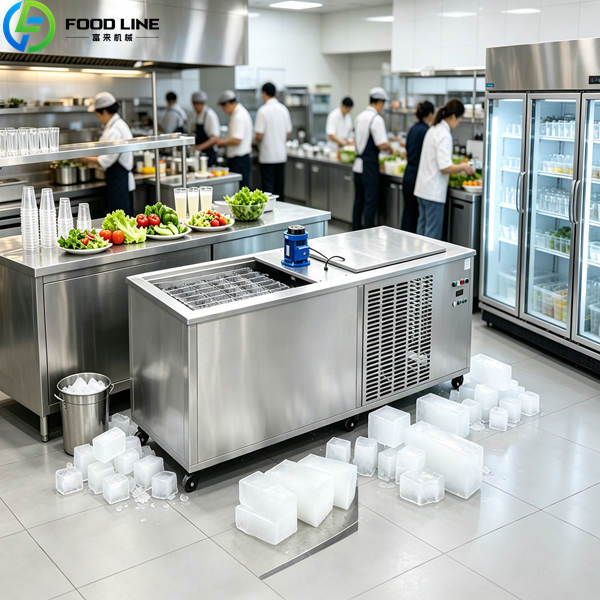

- Catering Industry: Our ice block machine provides high-quality block ice for bars, restaurants, and hotels. It is used to make cold drinks, keep ingredients fresh, and decorate dishes.

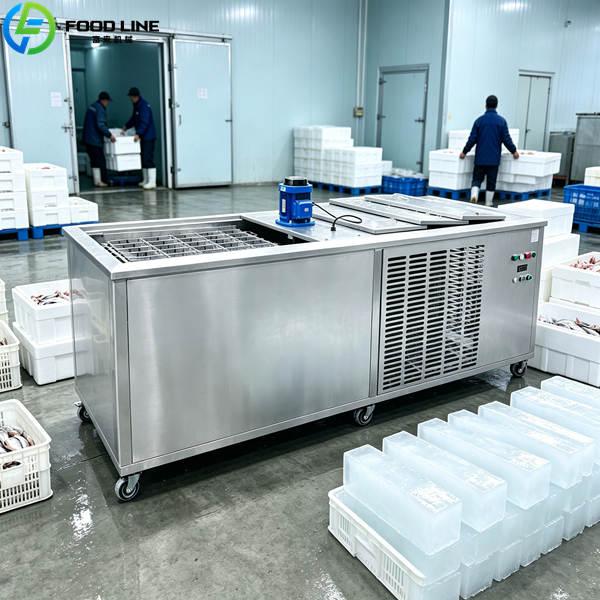

- Seafood Industry: Block ice keeps seafood fresh during transportation and storage. It reduces the loss of ingredients, improving economic benefits for users.
- Construction Industry: The ice block machine cools down concrete in construction projects. It prevents concrete from cracking due to high temperatures during curing, ensuring project quality.
- Medical institutions: We can use it to store vaccines, blood, and other medical supplies that require cryopreservation to ensure the effectiveness of these supplies.
FAQs
It varies by model, from 300kg to 20T. We can customize the model for you.
The warranty period is one year from the date of the bill of lading. For exported equipment, we only warranty parts (excluding consumable parts and damage caused by human error); shipping costs are not included in the warranty.
Yes. Different models of ice makers have different voltage adjustment ranges, and the price will vary accordingly. Please contact us for details.
Yes. It adopts a 3-level filtration system. The ice blocks meet food-grade standards and are safe to eat.
Why Choose Foodline ?
Professional Customization Capabilities
We have a professional R&D team and production workshop. We can provide customized solutions, such as adjusting ice weight, production capacity, and voltage.
Extensive experience and rigorous quality control
Foodline has many years of experience in the research, development, and production of ice makers. Our products are manufactured according to national standards. All products undergo factory inspection and have received high praise from customers in numerous countries and regions.
High-Quality Components
Our ice makers use high-quality components from well-known brands. For example, Copeland compressors, Danfoss expansion valves, and LS PLC controllers ensure the stability and durability of the equipment.
Comprehensive after-sales service
Our professional technical team will provide you with timely and thoughtful service, including installation guidance, maintenance, and repair.
