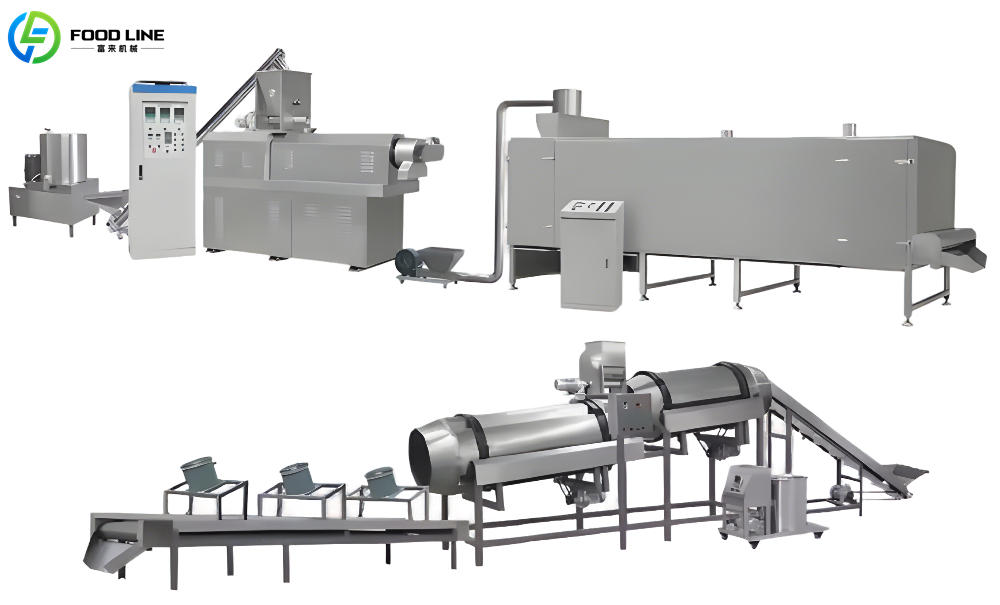

Our pet puffed food production line is a complete industrial-grade processing system that utilizes advanced twin-screw extrusion technology. This line can produce a variety of small animal feeds, including dry dog and cat food, functional pet food, pet snacks, and chewable tablets. Contact us now for a free quote!

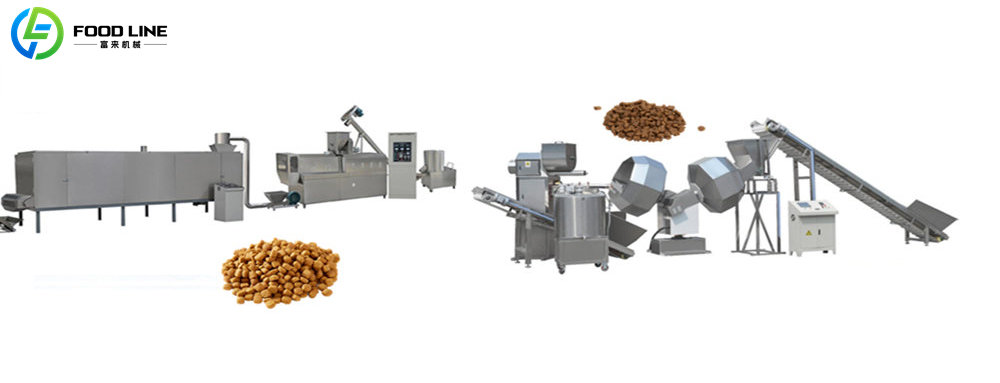

Workflow of Pet Food Production Line
The pet puffed food production line runs with a stable and clear workflow. It mainly includes the following steps:
Raw material preparation → Mixing → Feeding → Extrusion & Forming → Drying → Oil spraying → Flavoring → Cooling → Packaging
Raw materials are fully mixed and conveyed automatically. They are extruded into differe,nt shapes under proper temperature and pressure. After drying, seasoning and cooling, the final pet food products are made and ready for packaging.
Puffed Food Production Line Equipment

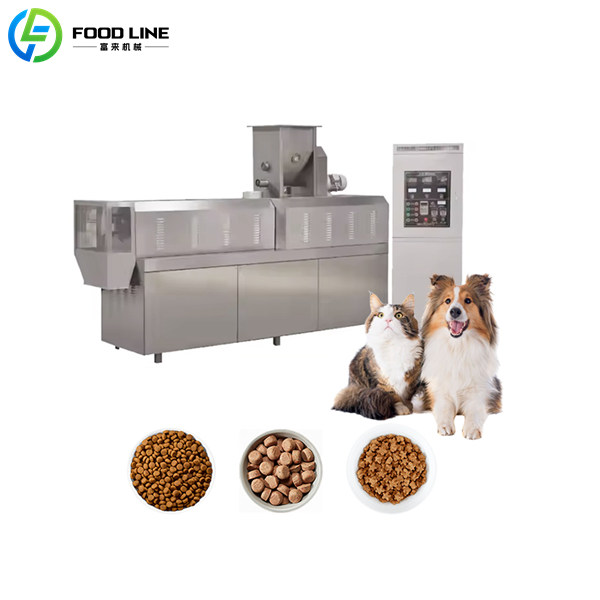

1.Twin-Screw Extruder
Function: As the core equipment of the entire pet food production line, the twin-screw extruder completes high-temperature ripening, pressurization, and molding at the same time. It can produce pellets of different shapes and sizes by changing molds.
| Model | Installed Power | Main Motor Power | Real Power | Capacity | Dimensions |
|---|---|---|---|---|---|
| FL65 | 34 kW | 22 kW | 20 kW | 100–150 kg/h | 2400×900×1800 mm |
| FL70 | 48 kW | 30 kW | 30 kW | 200–360 kg/h | 2600×900×1800 mm |
| FL85 | 73 kW | 55 kW | 45 kW | 300–500 kg/h | 4600×1000×2800 mm |
| FL95 | 130 kW | 110 kW | 115 kW | 1500–2000 kg/h | 5570×1300×3000 mm |

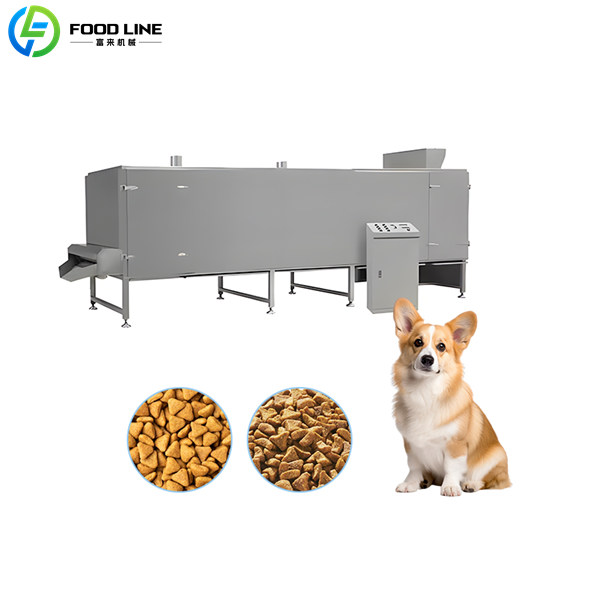

2.Electric Dryer
Function: The multi-layer dryer removes excess moisture from extruded pet food pellets evenly and efficiently. It guarantees proper hardness, crispness, and long shelf life, and prevents mold, caking, or deterioration during storage and transportation.
| Model | Installed/Consumed Power | Temperature | Capacity |
|---|---|---|---|
| 3-layer 5m Electric Dryer | 30 kW | 0–200°C | 100–150 kg/h |
| 5-layer 5m Electric Dryer | 45 kW | 0–200°C | 200–260 kg/h |
| 3-layer 5m Gas Dryer | 5 m³/H | 0–200°C | 150 kg/h |
| 5-layer 5m Gas Dryer | 6 m³/H | 0–200°C | 200 kg/h |
| Microwave Dryer (Small) | 30 kW | 0–200°C | 100–150 kg/h |
| Microwave Dryer (Large) | 45 kW | 0–200°C | 200–240 kg/h |
3.Flour Mixer
Function: The mixer fully blends grain powder, meat powder, vitamins, and other additives in an accurate ratio. Uniform mixing ensures stable nutrition, consistent taste, and smooth extrusion in the later process.
| Model | Installed Power | Real Power | Capacity | Dimensions |
|---|---|---|---|---|
| SCBFJ-I | 4 kW | 2.5–3 kW | 20–25 kg/batch | 1070×630×1450 mm |

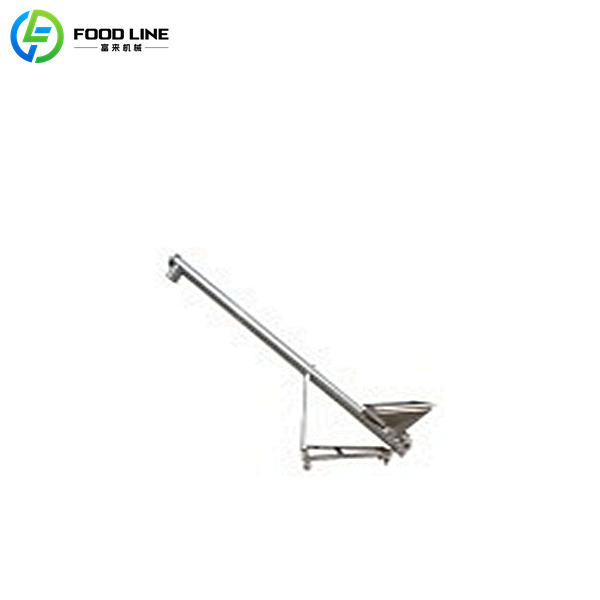

4.Screw Feeder
Function: It automatically conveys mixed raw materials to the extruder continuously and stably. It reduces manual labor, dust pollution, and material waste, and keeps the whole production line running smoothly.
| Model | Installed Power | Real Power | Dimensions |
|---|---|---|---|
| LXSL-I | 1.1 kW | 0.5–0.7 kW | 2500×600×2400 mm |
5.Air Conveyor
Function: It uses wind power to transport newly extruded soft pellets gently. This closed conveying method avoids pellet breakage or deformation, keeps products intact, and realizes pollution-free transmission between processes.
| Model | Installed Power | Real Power | Dimensions |
|---|---|---|---|
| FSJ-I | 2.2 kW | 1.5 kW | 2700×600×2100 mm |
6.Oil Sprayer
Function: It sprays oil and attractants in a fine mist form onto the pellet surface. It improves palatability, enhances food aroma, stimulates pet appetite, and increases product added value.
| Model | Installed Power | Dimensions |
|---|---|---|
| PYJ-I | 0.55 kW | 900×700×600 mm |
7.Elevator
Function: It lifts semi-finished products from a low level to high-level equipment smoothly. It optimizes production line layout, saves workshop space, and connects drying, seasoning, and cooling processes efficiently.
| Model | Installed Power | Capacity | Dimensions |
|---|---|---|---|
| TSJ-I | 0.37 kW | 200–400 kg/h | 1800×600×1200 mm |

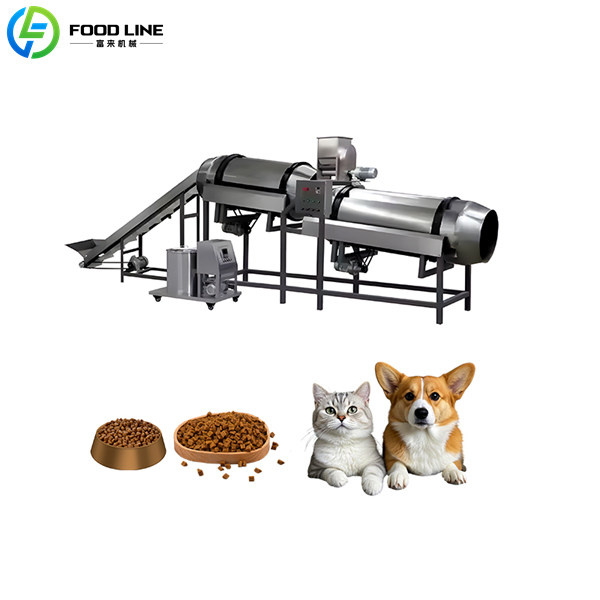

8.Double-Flavor Roller
Function: It coats seasoning powder, meat powder, and nutrition additives evenly on the pellet surface. It improves taste, flavor, and appearance, making pet food more competitive in the market.
| Model | Installed Power | Real Power | Dimensions |
|---|---|---|---|
| TSJ-R | 1.5 kW | 1.2 kW | 3600×800×1800 mm |

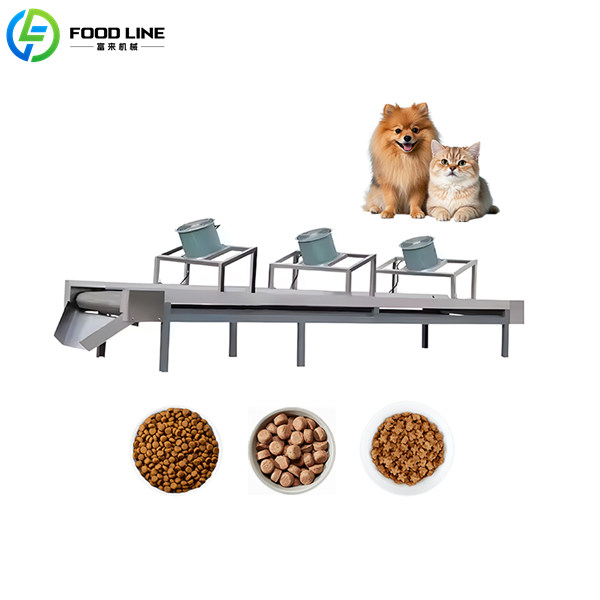

9.Cooling Conveyor
Function: It cools hot finished pet food to room temperature quickly and evenly. It prevents package deformation, moisture condensation, and pellet adhesion, ensuring safe packaging and long-term quality stability.
| Model | Installed Power | Dimensions |
|---|---|---|
| Cooling Conveyor | 1 kW | 5000×600×1400 mm |
Features of Pet Food Production Lines
- Wide Production Capacity Range: This production line is equipped with various models of machines. Production capacity ranges from 100 kg/hour to 2000 kg/hour, meeting the needs of small-batch pilot production, medium-scale processing, and large-scale industrial production.
- Energy Efficiency: The coordinated configuration of the extruder, dryer, and transmission systems minimizes heat loss and power consumption. This design achieves lower energy consumption per kilogram of output, significantly reducing long-term operational overhead.
- Strong compatibility: The main equipment and control system are designed in a unified standard. Users can add crushers, packaging machines, flavoring units, or detection equipment later to expand functions without changing the core production line.
- Material Safety: All parts that come into contact with food are made of 304 food-grade stainless steel. Meets international hygiene standards for pet food production.
Advantages of Our Pet Food Production Line
- Low production costs: The entire production line achieves continuous automated operation from material feeding to packaging. Only 2-3 workers are needed for supervision, reducing labor costs.
- Certification: The entire production line uses food-grade materials and standardized design. It meets international certification standards such as FDA and CE, which is beneficial for global sales.
- After-sales service: We provide comprehensive after-sales support services, including installation, commissioning, training, and maintenance, to ensure worry-free production.
- Stable Production: Our production lines ensure continuous and stable operation, effectively reducing downtime. This improves overall production efficiency and meets long-term usage requirements.
FAQs
It can produce dry dog food, cat food, fish feed, small animal feed, pet snacks, chews, and functional pet food by changing molds and adjusting parameters.
We provide electric heating, gas heating, and microwave drying for customers to choose based on local energy costs.
We provide 12-month warranty and lifetime technical support for all equipment.
