Potato chips consistently enjoy high consumer popularity. This fully automatic chips making machine uses fresh potatoes as raw material. It encompasses processing steps such as raw material handling, peeling, sorting, slicing, rinsing, blanching, dewatering, frying, deoiling, seasoning, and packaging. You are welcome to request a quote! WhatsApp/Phone: 86 13838385752
Potato Chip Production Line Process Section
Raw Material Conveying and Pre-treatment Section

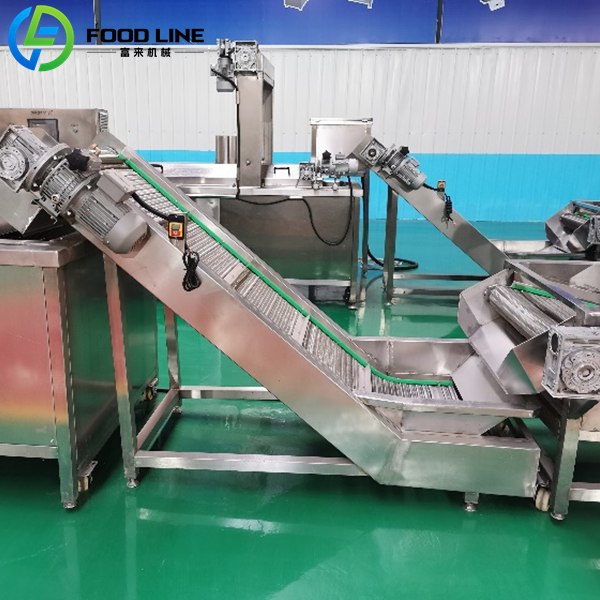

The lifting feeder conveys potatoes from the ground or a hopper to the washing equipment.
Size
2000 * 700 * 1600mm
Belt Width
600mm
Power
0.55Kw

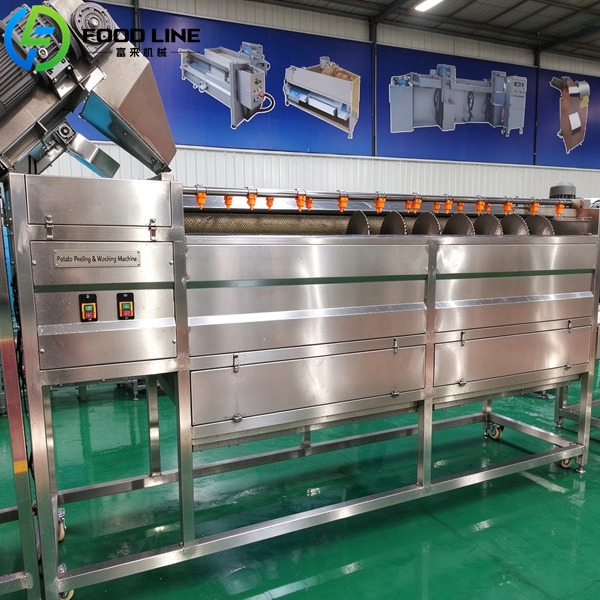

The stiff-bristle brush rollers of the washing and peeling machine scrub the surface of the potatoes, while water sprays remove soil and impurities. A drainage structure at the bottom allows wastewater to be discharged.
Length of Roller
800mm
Brush Quantity
9
Size
1800 * 1000 * 1500mm
Power
1.5Kw

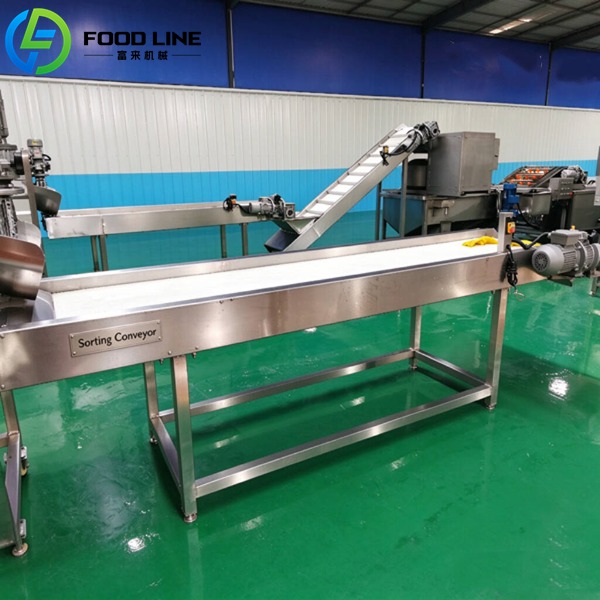

The sorting conveyor features a stainless steel frame and a food-grade conveyor belt. Workers can pick out spoiled potatoes, residual skin, and irregularly sized raw materials during the conveying process.

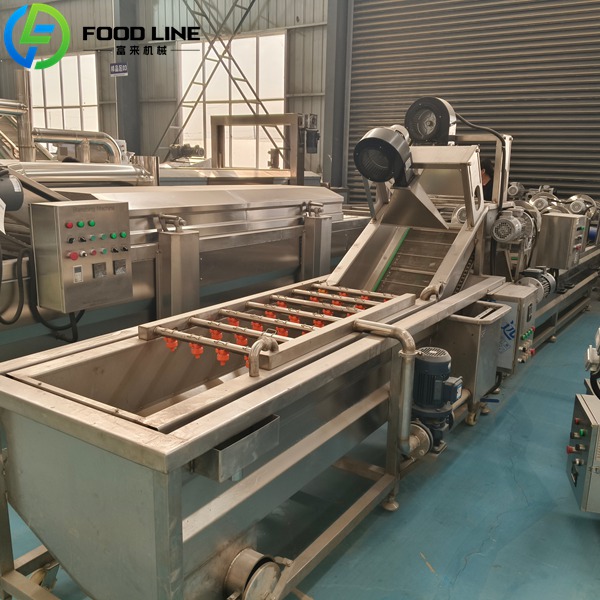

The bubble washing machine utilizes bubbling action and circulating water flow to remove residual starch and fine impurities. Starch removal is a crucial step in fully automatic chips making machine, as starch affects the final texture of the product.
Size
3500*1000*1300mm
Driving Power
0.75Kw
Water Pump
1.5Kw
Air Pump
2.2Kw
Pre-cooking and Dehydration

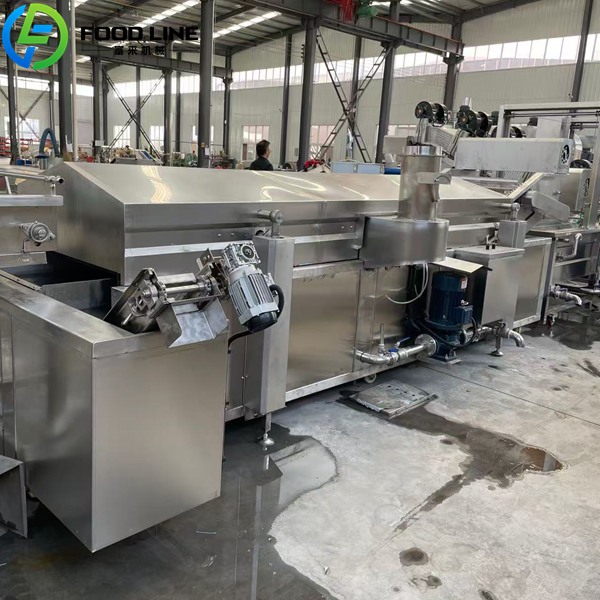

The washed potato slices enter the blanching machine. Pre-cooking improves the internal texture and color of the potato chips.

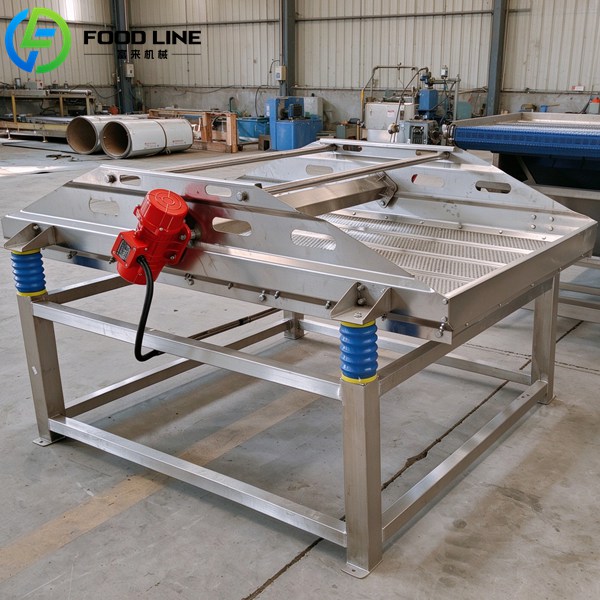

After pre-cooking, the potato slices enter a vibrating screen. This equipment uses high-frequency vibration to remove excess surface moisture and screen out fragments.
Size
2000*800*1300mm
Power
0.5Kw
Weight
80KG

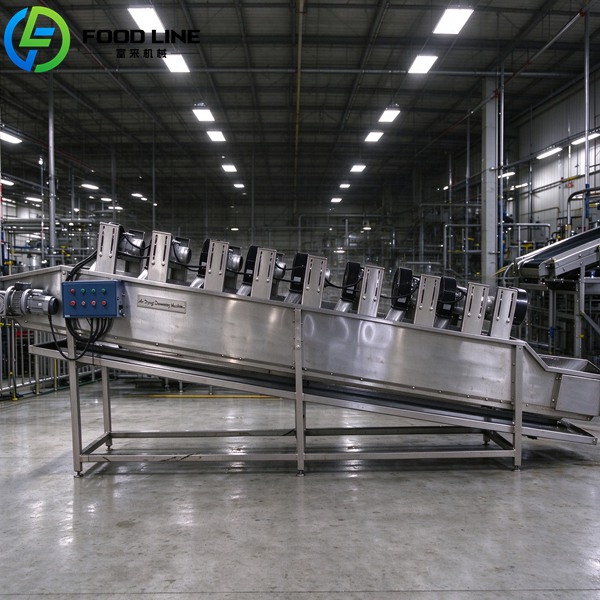

The air-drying dewatering machine employs multiple sets of fans to blow air onto the potato chips on the conveyor belt. This dewatering process reduces oil splashing when the chips enter the fryer.

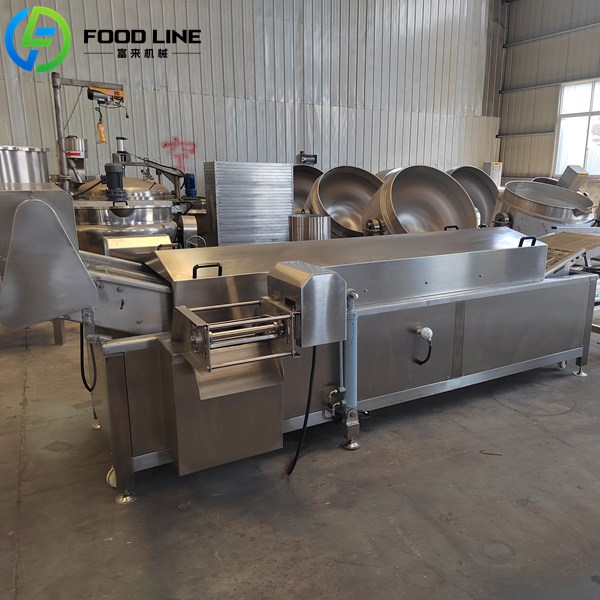

The continuous fryer conveys potato chips into the oil tank via a mesh belt, frying them at a set temperature for a specific duration. A dual-layer mesh belt minimizes chip overlap.
Heating Power
72Kw
Side Scraping Slag
0.37Kw
Temperature
170-180℃
Time
40-60s

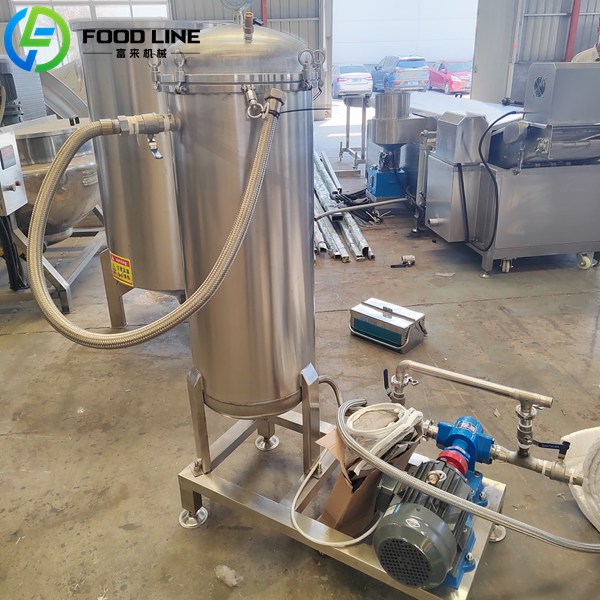

The vacuum filter removes fine residues from the oil, reducing the impact of repeated heating during frying on oil quality.

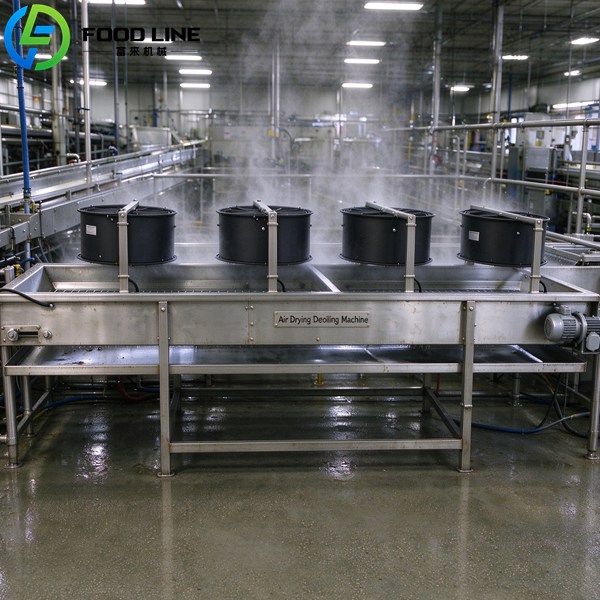

The air drying deoiling machine uses fans, a turnover mesh belt, and a bottom oil-collection structure to expose the chip surfaces to airflow, thereby reducing oil content.
Size
4000*600*1500mm
Power
0.5Kw*3
Weight
180KG
Seasoning and Automatic Packaging

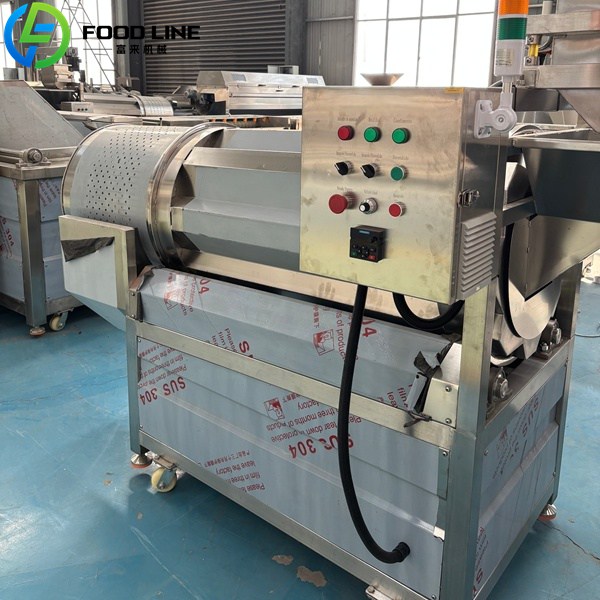

Seasoning is a crucial step in the chip production line. During operation, the rotating drum of the seasoning machine tumbles the product, allowing the seasoning powder to adhere to the surface of the chips.
Power
1.5KW
Drum Diameter
600mm
Size
1500*800*1600mm

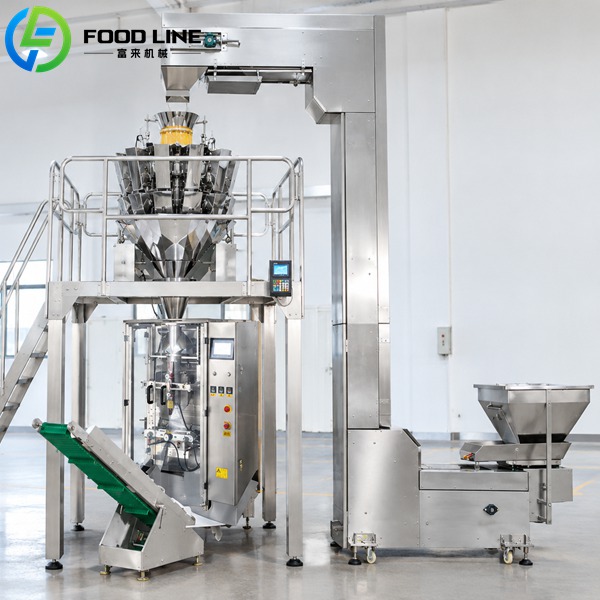

After seasoning, the potato chips enter the packaging machine. It performs functions such as weighing, dispensing, bag forming, sealing, and cutting.
Bag Weight
20g – 40g
Precision
Around 0.3%
Packing Speed
35-55 bags
Size
1600*1400*2300mm
Weight
460KG
Text us! WhatsApp/Phone: 86 13838385752
FAQ
What are the production volumes?
Common production capacities include 30 kg/h, 50 kg/h, 70 kg/h, 100 kg/h, 200 kg/h, and 300 kg/h. Models with a capacity of over 100 kg are fully automatic. Those with a capacity of 100 kg or less are semi-automatic and require manual assistance.
What is the ratio of raw materials to finished products?
Finished potato chips: Potato-to-product ratio of 1:0.75 (varies slightly depending on the potato variety). Standard market chip thicknesses: 1.0 mm, 1.2 mm, and 1.5 mm.
What are the heating methods?
The primary heating method is electric heating. Please feel free to contact us if you require other heating methods.
