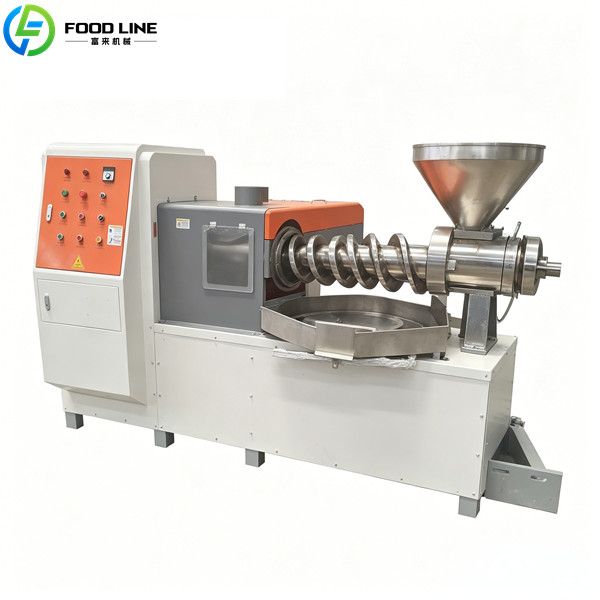

Foodline’s industrial oil pressing machine integrates advanced PLC control technology and precision mechanical design, while the industrial oil press machine can adapt to more than 20 types of oilseeds, nuts, and beans, meeting diverse production needs for small- to medium-sized industrial oil production lines. It is widely used in food processing factories, oil mills, and agricultural product processing plants to extract high-quality edible oil from various oil-bearing raw materials. Contact us for a free quote! WhatsApp / Phone: +86 139 3718 1903
Raw Material Feeding: After simple pretreatment (cleaning, drying), the oil-bearing raw materials are evenly fed into the pressing chamber through the forced feeding system.
Spiral Pressing: The high-hardness screw rotates to push the raw materials forward, and the volume of the pressing chamber gradually decreases, forming strong pressure to squeeze out the oil from the raw materials.
Oil Filtration: The crude oil flows into the vacuum filtration system, which quickly removes impurities and moisture to improve the purity and quality of the edible oil.
Cake Discharge: The pressed material cake is automatically discharged from the end of the pressing chamber through the cake ring, completing the entire oil extraction process.
Intelligent Control System: Our Intelligent Oil Extraction Unit is equipped with a PLC control cabinet, which supports one-key operation, real-time parameter monitoring, and adjustable pressing temperature and speed.
High-Efficiency Pressing System: The screw and pressing bars are made of 20CrMnTi alloy steel, carburized and quenched to 60HRC hardness. The spline connection between the press shaft and gearbox delivers greater torque
Multi-purpose Processing Capacity: The precision adjustment system can accurately control the gap between the pressing screw and pressing bar, meeting the extraction requirements of various oilseeds.
Automatic Continuous Operation: Stainless steel oil pressing machinery is equipped with a forced feeding system and automatic cake return system, which realizes continuous feeding and discharging, reducing the risk of material blockage.
Food-Grade Safety Design: All parts in contact with oil are made of food-grade 304 stainless steel. The vacuum filtration system adopts a negative pressure design.
Advantages of Industrial Screw Oil Pressing Equipment
High Oil Yield: The oil extraction rate can reach 90-95%, and the residual oil in the cake is less than 8%. It maximizes the oil output from raw materials, directly improving the economic benefits of your production.
Low Operating Cost: The oil-producing press unit’s energy-saving design reduces power consumption per unit of product. The wear-resistant parts have a long service life, reducing the frequency of replacement and maintenance costs.
24-Hour Operation: The industrial-grade structure and reliable transmission system support 24-hour continuous production, which is suitable for large-scale commercial production and improves production efficiency.
Wide Business Adaptability: The industrial oil press machine can process a variety of common oilseed crops, including rapeseed, peanuts, soybeans, sunflower seeds, and other oilseed kernels.
The extraction rate is 90%–95%, depending on the raw material’s oil content. For materials with 40%–50% oil content, the rate exceeds 92%, and residual oil in the cake is below 8%.
What raw materials can it process?
It handles over 20 common oilseeds, including rapeseed, peanut, soybean, sunflower seed, sesame, walnut, and more. It accommodates raw materials with oil content ranging from 10% to 75%.
Is it easy to operate?
Yes. It features an intelligent control system with one‑key start/stop and adjustable parameters for different materials. Operation manuals and video tutorials are provided, and simple training is sufficient for proficient use.
What about after‑sales service and maintenance?
The machine comes with a 12‑month warranty and lifelong technical support. Our global service team handles overseas installation, commissioning, and training.
It surpport customize?
Yes. Foodline can customize processing capacity, voltage, and configuration based on your production scale, raw material types, and plant space. We also offer complete production line solutions, including pretreatment, pressing, filtration, and filling equipment.
Rich Experience: Foodline has more than 15 years of experience in the production, research, and development of oil extraction equipment, and focuses on providing industrial oil press machine solutions for global customers.
Competitive Factory Price: We are a direct manufacturer, without middlemen, providing you with the most competitive price and high-quality products.
Strict Quality Control System: We strictly test and inspect every machine before delivery and secure CE, ISO, and other international quality certifications. We use high-quality raw materials and advanced production technology to ensure the stability and durability of the equipment.
Customized Solutions: We provide one-stop customized services, from equipment selection and production line design to installation and commissioning.
Foodline is a food processing manufacturer in China, integrating R&D, production, sales, and after-sales service. We ship our machinery to more than 50 countries and win high praise from clients thanks to stable quality and full-range service support. We not only provide a single oil press machine, but also can design and build a complete edible oil production line according to your needs. Our products also include coffee arm robots, barbecue food trailers, ice block machines, and more. If you are looking for a reliable industrial oil press machine supplier, please contact us for a free quotation, factory tour arrangement, or any technical questions.
