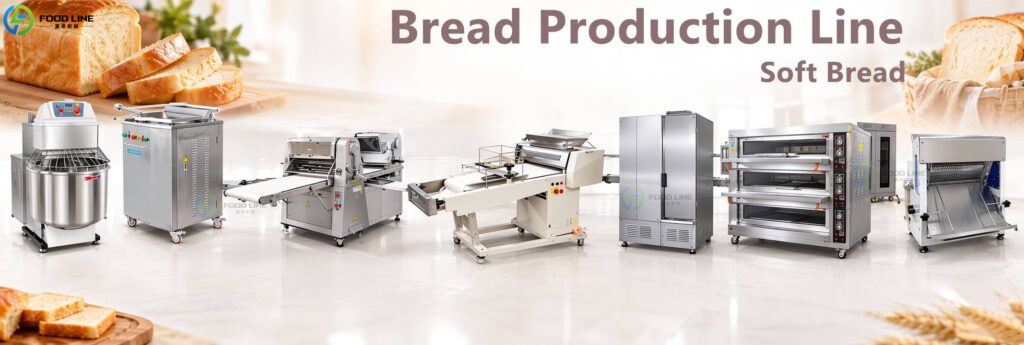

Foodline bread production line encompasses processes including dough mixing, dividing, rounding, proofing, and shaping. It is suitable for producing soft bread, square loaves, and sandwich bread. Operators simply need to control parameters such as dough weight, proofing conditions, baking temperature, and slicing thickness. Inquire about pricing! WhatsApp/Phone: 86 13838385752

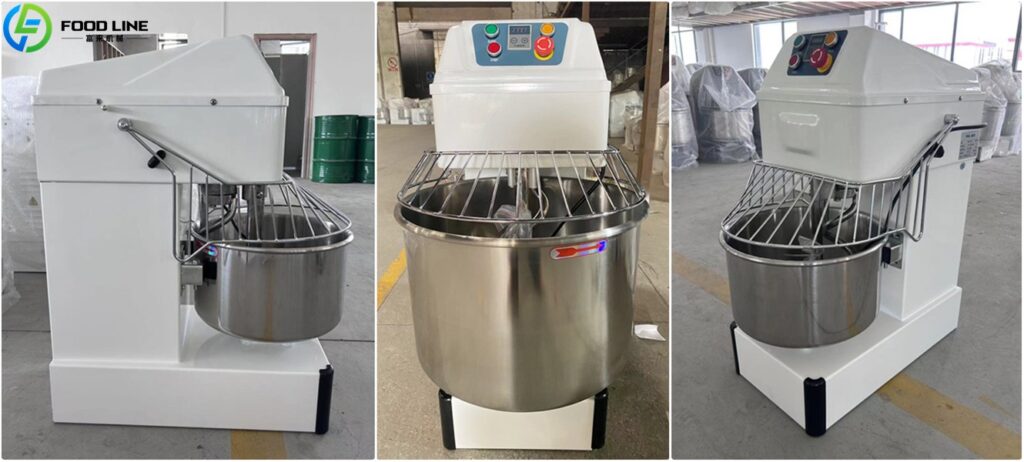

It primarily mixes ingredients—such as flour, water, yeast, sugar, fat, and milk powder—to form a dough. The ingredients are blended through the rotation of a mixing paddle. During the low-speed stage, the focus is on mixing the ingredients; during the high-speed stage, the dough is repeatedly stretched to develop a network-like structure.
Dimensions
70 × 120 × 127 cm
Power
380V / 6.25kW
Dry Flour Capacity
50 kg
Water Content
55–68%
Contact Us! WhatsApp/Tel: +86 138 3838 5752
dough mixing device

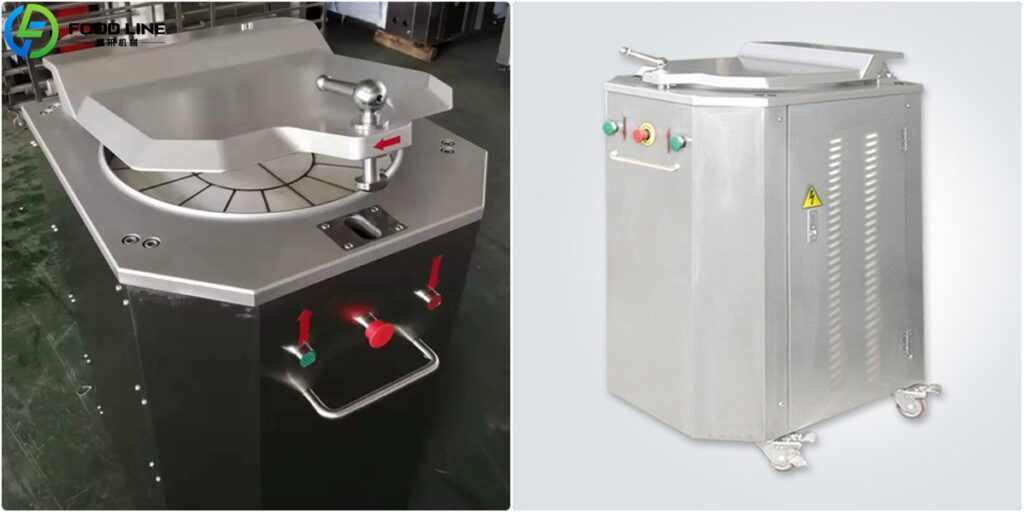

Hydraulic Dough Divider
This machine rapidly divides dough into multiple portions based on weight, with a capacity ranging from 50 to 550 grams per piece. Operators load the prepared dough into the hopper; a hydraulic system then drives a pressure plate, forcing the dough into the dividing chamber.
Capacity
30 pieces / batch
Dough Weight
90–550 g / piece
Dimensions
65 × 73 × 114 cm
Power
380V / 2.2kW
Contact Us! WhatsApp/Tel: +86 138 3838 5752
hydraulic dough divider device

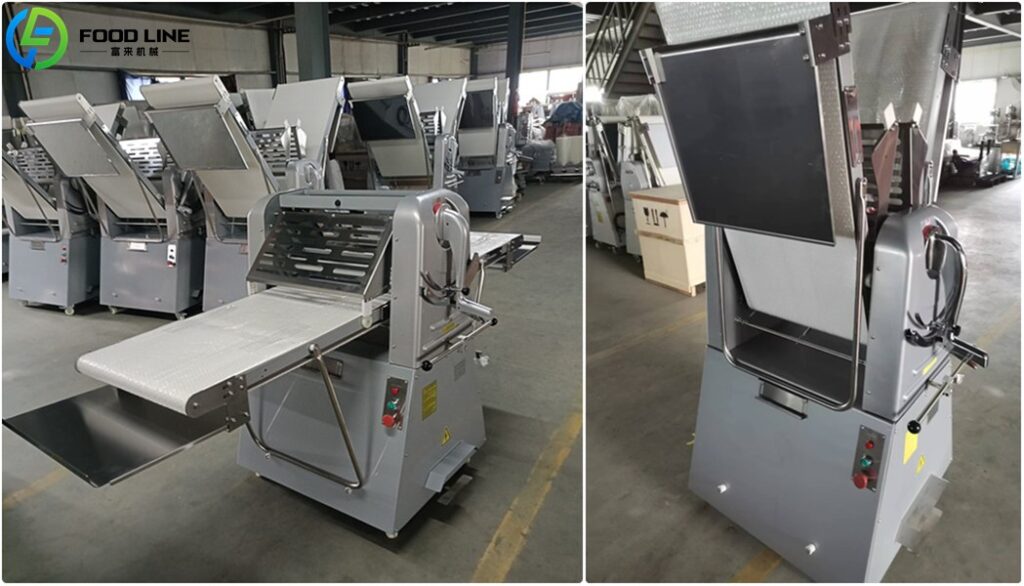

Dough Sheeter
The machine sheets and degasses soft dough. As the dough passes between vertically or horizontally arranged rollers, the rollers continuously flatten and thin it. Operators can adjust the gap between the rollers to control the dough sheet thickness.
Voltage & Power
380V / 0.4kW
Folded Dimensions
66 × 107 × 177 cm
Working Dimensions
289 × 107 × 120 cm
Conveyor Belt Width
63 cm
Contact Us! WhatsApp/Tel: +86 138 3838 5752
dough sheeter device

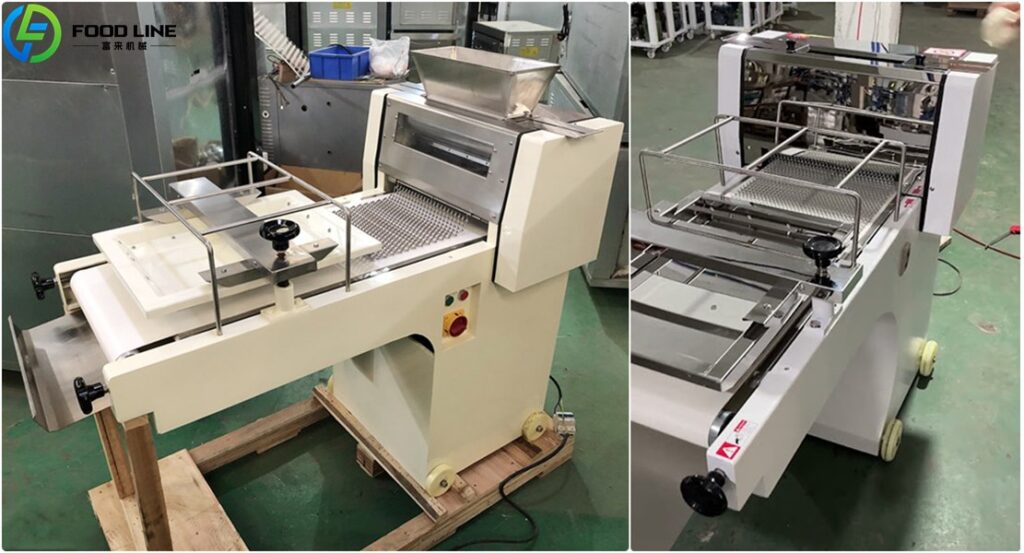

Toast Moulder
This equipment shapes the divided dough to match the toast mold.
Dough Weight
50–550 g / piece
Power
380V / 0.75kW
Dimensions
67 × 156 × 133 cm
Contact Us! WhatsApp/Tel: +86 138 3838 5752
toast moulder device

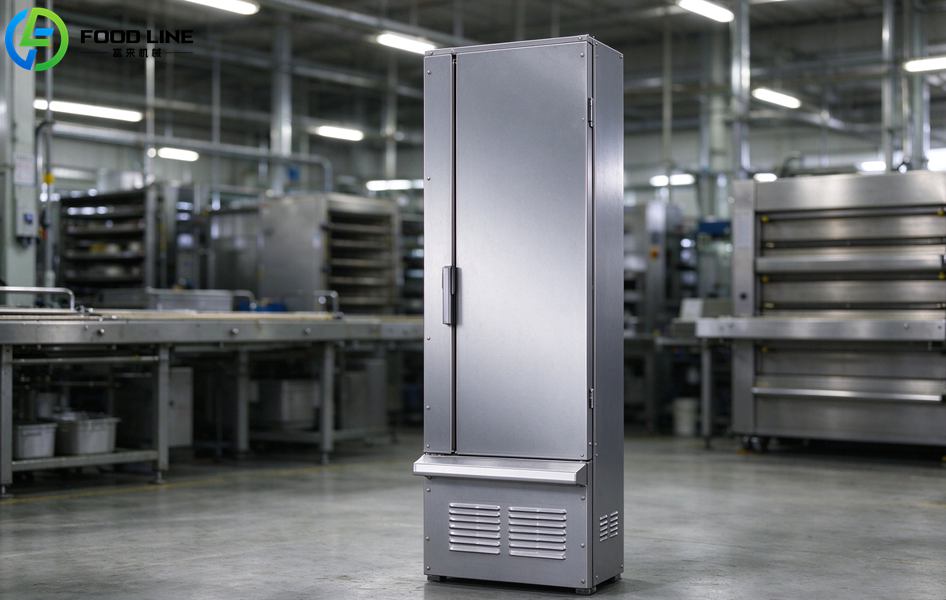

Steam Proofing Unit
The equipment consists of a main unit and a control box and utilizes steam humidification. It provides independent control over temperature and humidity. The proofing process comprises both intermediate proofing and final proofing. Both under-proofing and over-proofing can adversely affect the bread’s texture. Operators must adjust the parameters based on the dough recipe, yeast quantity, and ambient temperature.
bread proofing component device

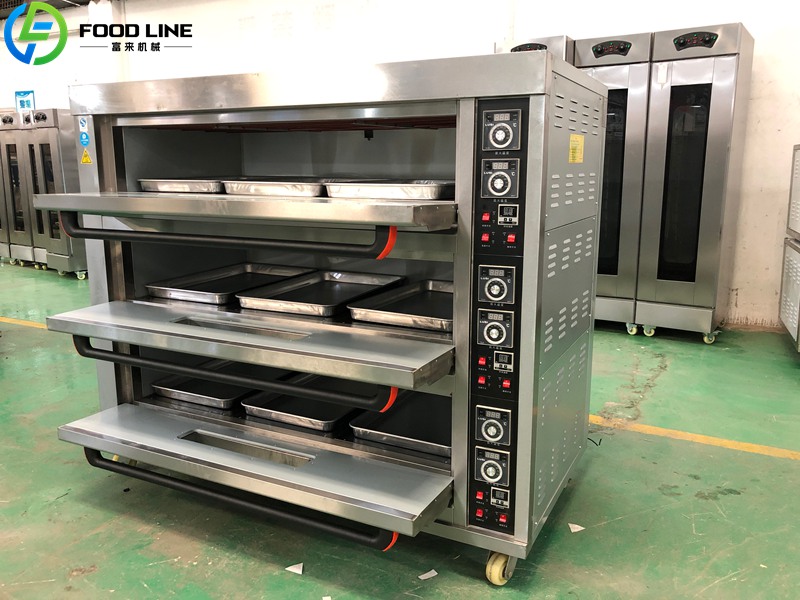

Three-Deck Electric Oven
The oven utilizes electric heating. When powered, the electric heating elements generate heat and transfer thermal energy to the dough and baking trays.
Power
380V / 28.5kW
External Dimensions
209 × 126 × 176 cm
Internal Dimensions
167 × 82 × 23 cm
Contact Us! WhatsApp/Tel: +86 138 3838 5752
three deck electric oven device

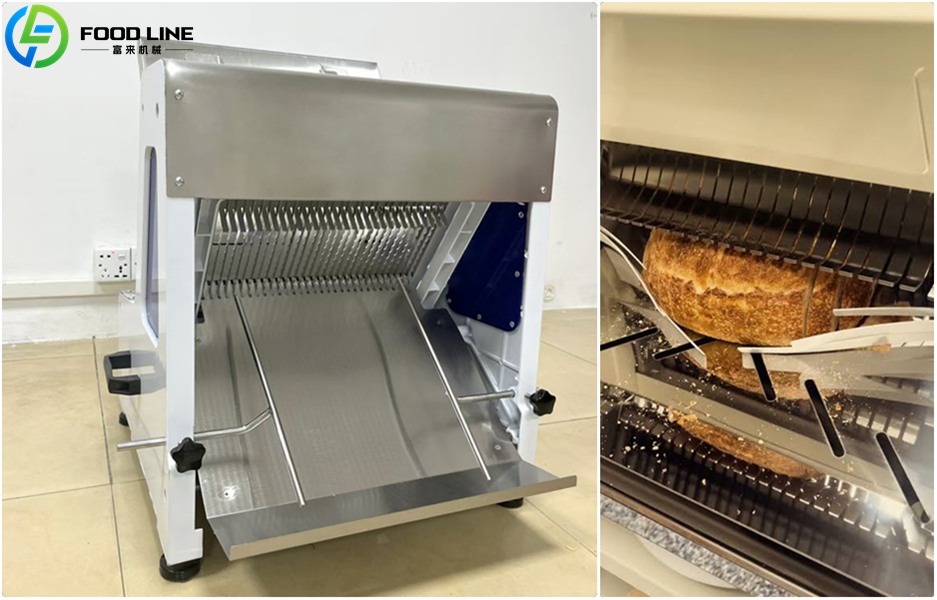

Commercial Bread Slicer
This equipment is used on the bread production line to slice cooled loaves into slices of uniform thickness. It controls the slice thickness by maintaining a fixed distance between the blades.
Slice Thickness
1.2 cm
Dimensions
60 × 74 × 73 cm
Power
220V / 0.25kW
Contact Us! WhatsApp/Tel: +86 138 3838 5752
bread slicer device
FAQ
What kinds of bread can be produced on this production line?
Any type of soft bread is suitable, such as sliced bread, sweet bread, hamburger buns, and filled breads.
Is it necessary to include a dough pressing and sheeting unit in the production line?
Soft bread requires dough pressing and rolling to expel air bubbles. If producing hard bread, dough-pressing equipment is not required. We offer specialized equipment for hard bread production.
About Foodline
We are a company specializing in food machinery and operate our own factory, providing complete baking production lines to our clients. We design tailored solutions based on your product type, production capacity requirements, factory floor space, and budget. In addition to soft bread processing lines, we also offer production lines for hard bread and puff pastry bread production line. Please contact us for a quote! WhatsApp/Phone: 86 13838385752
