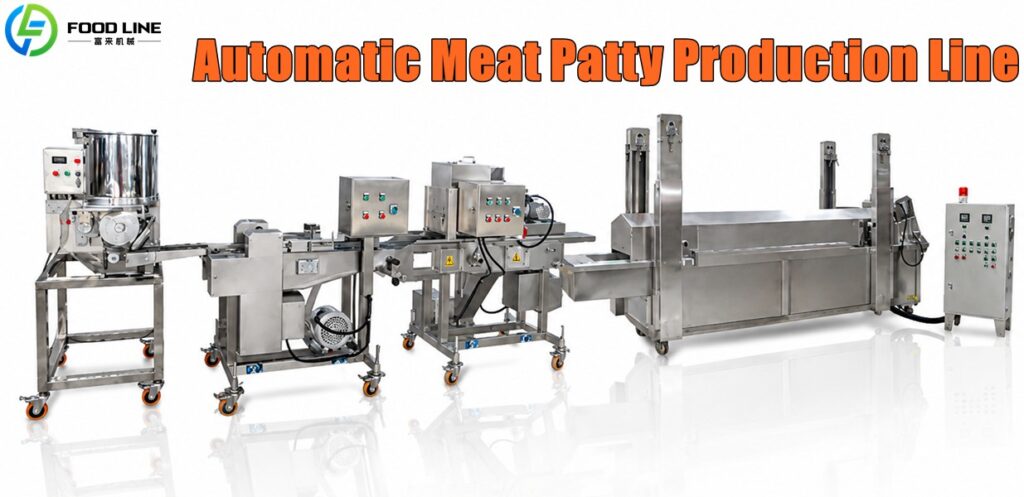

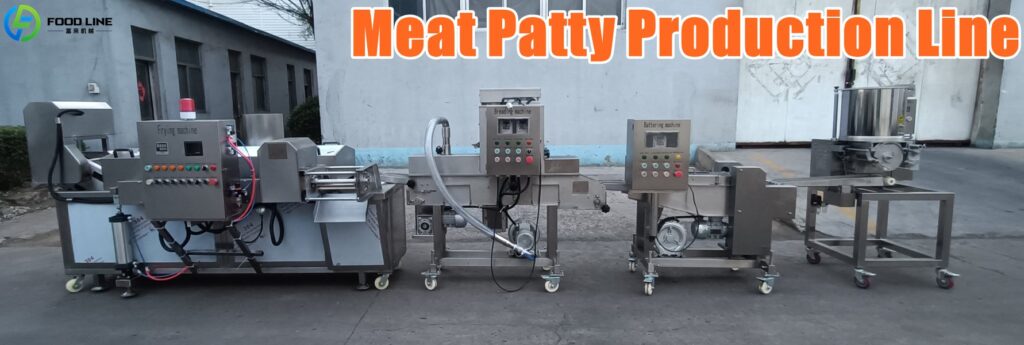

The patties making machine price comprises a patty former, a battering machine, a breading machine, and a continuous fryer. This compact, fully automated production line features a small footprint and is ideal for small-to-medium-sized food processing plants, catering companies, and entrepreneurs. Please feel free to contact us for more information. WhatsApp/Phone: +86 13838385752
Patty Production Line Workflow
Raw material preparation → Portioning/Shaping → Batter coating → Frying → Cooling and quick-freezing → Packaging (optional)
It is the core equipment of the production line, automatically handling meat filling, portioning, forming, and discharging. This model has an output rate of 35 pieces per minute. The patty diameter is adjustable between 28 mm and 100 mm, and the thickness between 8 mm and 15 mm. By changing molds, the equipment can produce shapes such as circles, squares, ovals, triangles, and hearts.
Tank Capacity
Diameter
Thickness
Voltage
Power
Mesh Belt Width
Weight
Output
Dimensions (L×W×H)
30 L
28–120 mm
8–18 mm
380V 50Hz
0.55–0.75 KW
130 mm
100 KG
30–35 times/min
860×620×1350 mm
Contact Us! WhatsApp/Tel: +86 138 3838 5752
automatic patty forming device
Battering Machine
The battering machine is primarily used to coat the surfaces of products such as meat patties, chicken cutlets, fish fillets, shrimp products, vegetable products, and other prepared foods. It utilizes a top-and-bottom mesh belt conveying system to ensure complete coverage of the product with batter. The control panel lets operators adjust parameters such as batter thickness, conveyor speed, and circulation status.
Conveying Power
Fan Power
Voltage
Conveying Speed
Mesh Belt Width
Weight
Dimensions (L×W×H)
0.55 KW
0.25 KW
380V 50Hz (customizable)
3–15 m/min (VFD)
200 mm
120 KG
1360×600×1280 mm
Contact Us! WhatsApp/Tel: +86 138 3838 5752

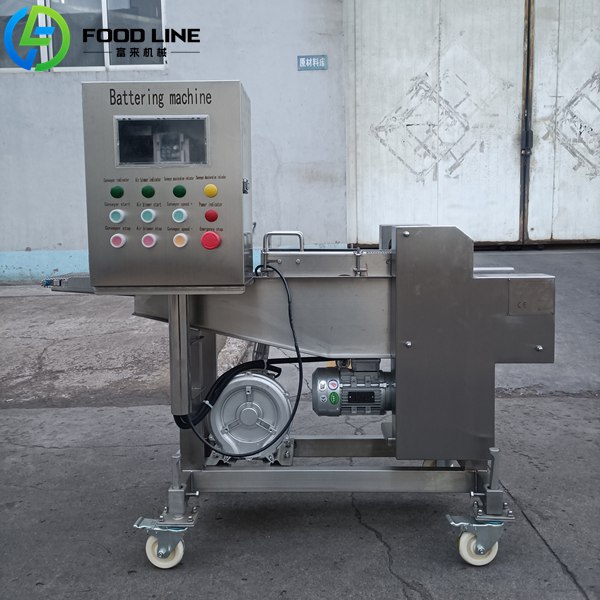

battering device

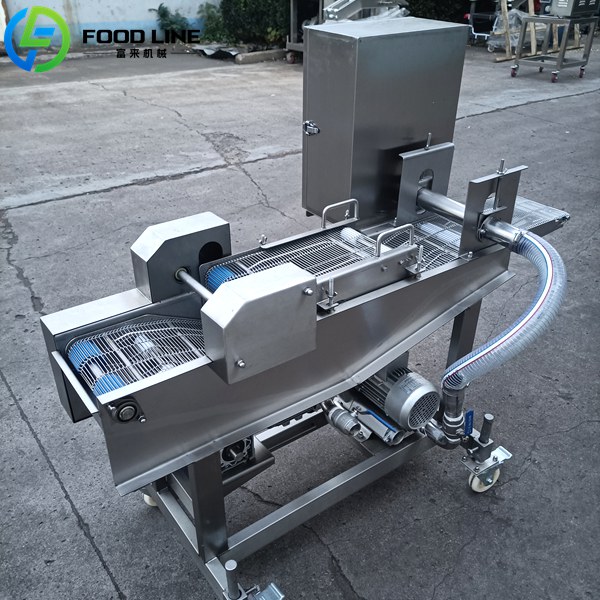

upper section of the battering device
Breading Machine
This equipment is designed for coating products with breadcrumbs prior to frying. It simultaneously applies breadcrumbs to both the top and bottom of the product, with the coating thickness controlled by a pressure roller. A blower removes and recovers excess breadcrumbs. The conveyor speed, breadcrumb application rate, and pressure roller height are all adjustable. It is suitable for products such as hamburger patties, chicken nuggets, fish fillets, onion rings, hash browns, pumpkin cakes, meat skewers, and other breaded foods.
Conveying Power
Fan Power
Screw Power
Voltage
Conveying Speed
Mesh Belt Width
Weight
Dimensions (L×W×H)
0.55 KW
0.25 KW
0.55 KW
380V 50Hz
3–15 m/min (VFD)
200 mm
180 KG
1680×650×1600 mm
Contact Us! WhatsApp/Tel: +86 138 3838 5752

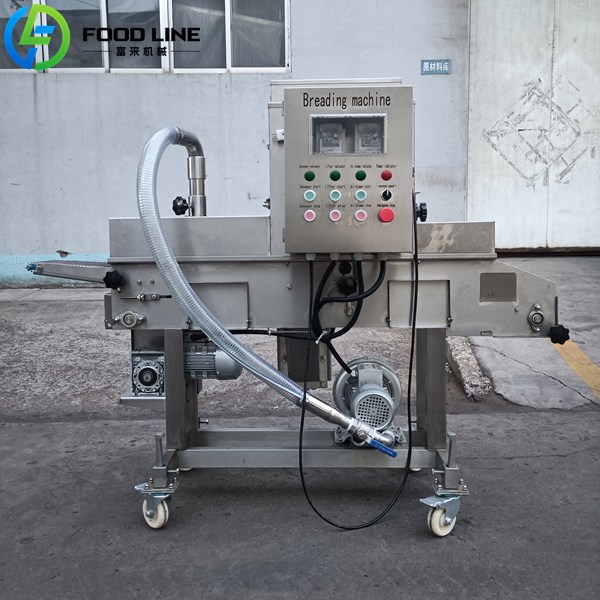

breading device

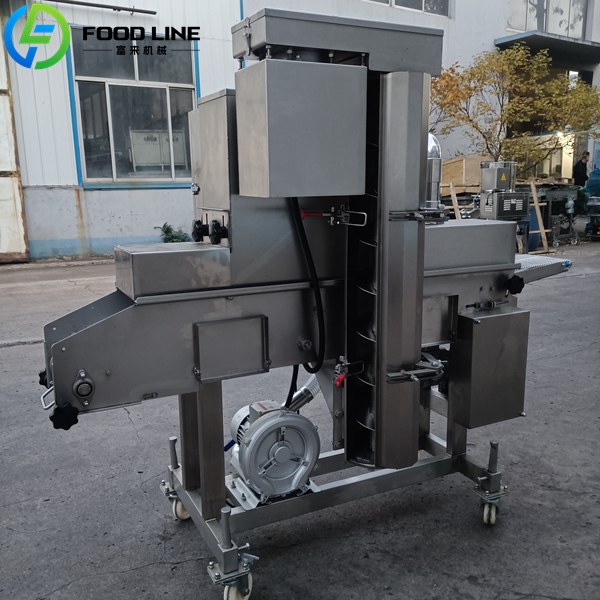

rear of the breading machine
Continuous Fryer
Oil temperature, conveyor belt speed, and frying time are determined by the product’s thickness, diameter, and type. The fryer can be customized according to the factory layout regarding discharge direction, conveyor belt length, heating method, and conveying height. Heating options include electric and gas heating.
Voltage
Heating Power
Oil Capacity
Conveying Speed
Mesh Belt Width
Weight
Frying Temperature
Dimensions (L×W×H)
380V 50Hz
48 KW
230–250 L
3–15 m/min (VFD)
300 mm
530 KG
Ambient – 260°C
3000×1200×1400 mm
Contact Us! WhatsApp/Tel: +86 138 3838 5752

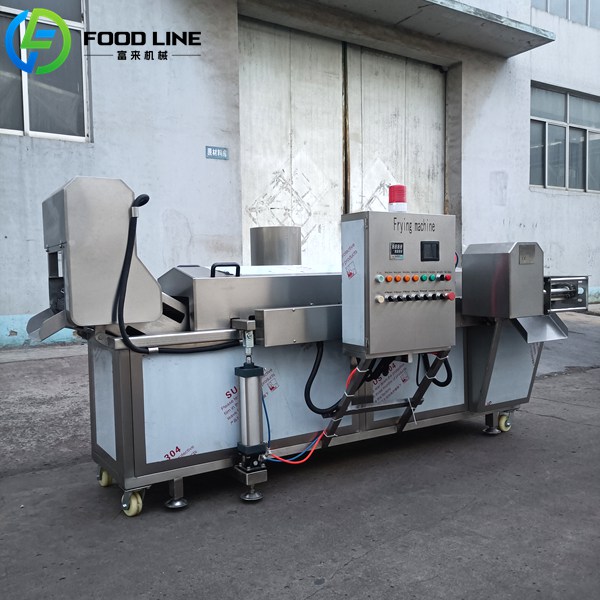

frying device

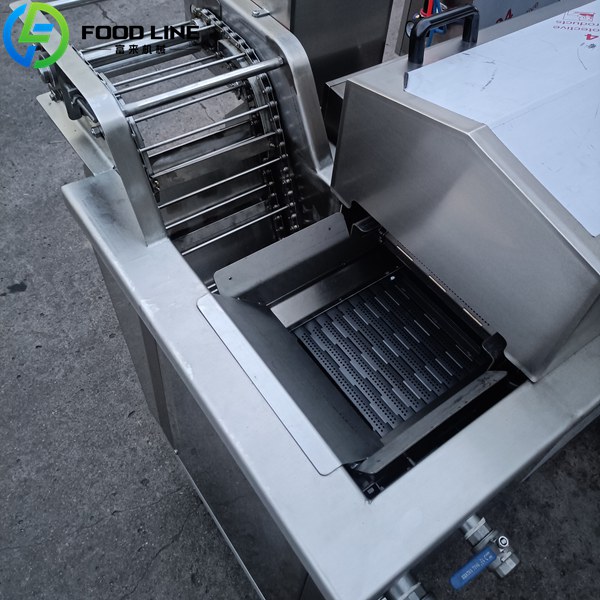

frying device detail
Patty Making Machine Price Range
Patties making machine price depends on factors such as the equipment model, production capacity, level of automation, number of molds, voltage standards, and conveyor length. Adding downstream equipment—such as a quick-freezer or fryer—will also affect the price.
Taking a production line composed of a forming machine, battering machine, breading machine, and continuous fryer as an example, the reference price typically starts at $11,900. If equipment with higher capacity or downstream machinery is required, the budget for the entire line will be higher.
About Foodline
We provide solutions ranging from standalone units to complete production lines tailored to your specific needs, offering customization options for mold shapes, equipment dimensions, production capacity, voltage, and conveying direction. Throughout the installation process, we offer process recommendations, equipment layout planning, installation and commissioning, and operational training to ensure you can get up and running quickly. Please feel free to contact us for more information. WhatsApp/Phone: +86 13838385752
