Pita bread is a traditional flatbread with a hollow structure, traditionally found in Arabia. It can be served with various foods such as grilled meats, vegetables, salads, and hummus. Foodline pita bread production line can produce this bread. This line mainly consists of a dough mixer, a tortilla machine, and a pillow packaging machine, and it can complete the processes of dough mixing, shaping, baking, ripening, cooling, and packaging. Factory prices! WhatsApp/Phone: +86 13838385752

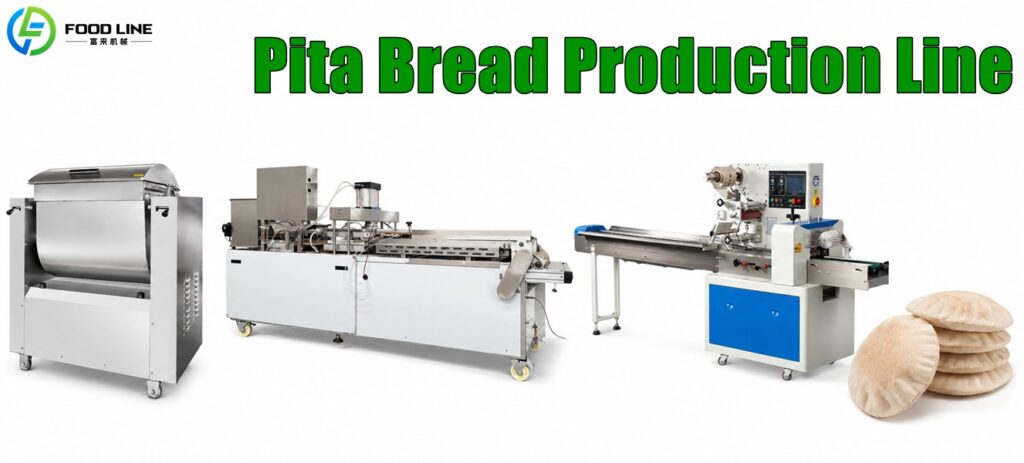

Arabic Bread Production Line Process Flow
Raw material weighing → Dough mixing → Dough proofing or resting → Dividing and shaping → Baking or grilling → Cooking → Air cooling → Finished product inspection → Pillow packaging
First, flour, water, yeast, salt, and oil are added to a dough mixer in the correct proportions. After proofing, the dough enters a tortilla machine for pressing, shaping, and heating. The finished pita bread is output from the tortilla outlet and then cooled. Finally, the cooled product is packaged in a pillow-type packaging machine.
The dough mixer is the initial equipment in the production line; the quality of the dough affects the texture and shaping of the pita bread. This machine can process 130 kg per hour. It has a small footprint and is suitable for integration with subsequent equipment.
Voltage
220/380V
Power
1.5 kW
Batch Capacity
13 kg
Throughput
130 kg/h
Machine Weight
95 kg
Machine Dimensions (L×W×H)
670 × 450 × 830 mm
Contact Us! WhatsApp/Tel: +86 138 3838 5752

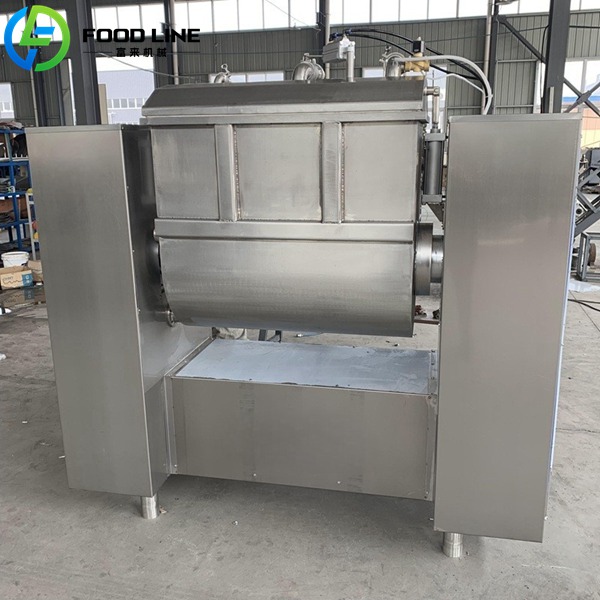

horizontal dough mixer device

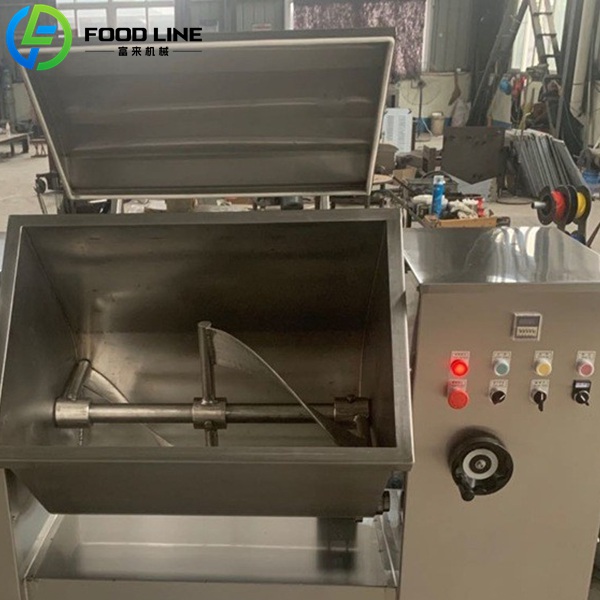

horizontal dough mixer device detail

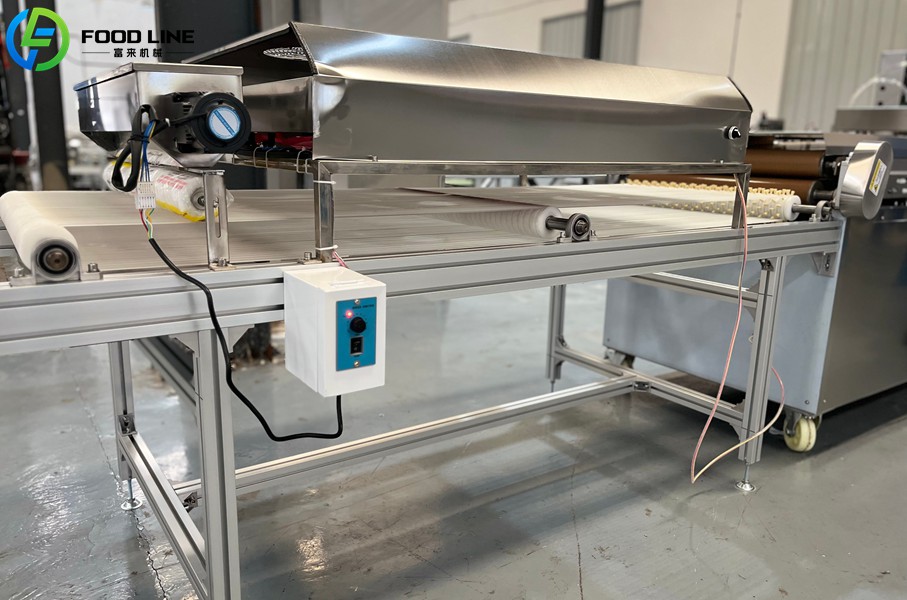

Automatic Tortilla Machine
The tortilla machine is the core equipment of the production line, responsible for shaping, baking, cooking, and cooling the dough. The equipment includes a flour hopper, shaping device, cooking device, air-cooling device, main control panel, and tortilla outlet. It uses a continuous conveyor structure. After the dough is shaped, it enters the heating zone for baking, then undergoes cooking and air cooling before being output as the finished product. Actual output varies depending on the tortilla’s diameter, thickness, product formula, and baking time.
This equipment employs a continuous horizontal and vertical sealing structure, enabling automatic packaging of single or multiple pita bread sheets. It is suitable for various packaging materials, including plastic composite films and food-grade films. It utilizes a three-servo motor and PLC control system. A positioning stop function reduces issues such as sticking, miscutting, and empty packaging. It also features a self-diagnostic function for easy troubleshooting. The packaging machine can also perform date printing, punching, inflation, and counting. You can determine the specific configuration according to your packaging requirements.
Voltage
220V, 50/60Hz
Power
3.2 kVA
Film Width
Max. 590mm
Bag Length
120mm (depends on product)
Bag Width
80–270mm
Product Height
Max. 80mm
Film Roll Diameter
Max. 320mm
Packaging Speed
10–25 m/min (actual speed varies by product)
Machine Dimensions (L×W×H)
4172 × 970 × 1405 mm
Contact Us! WhatsApp/Tel: +86 138 3838 5752

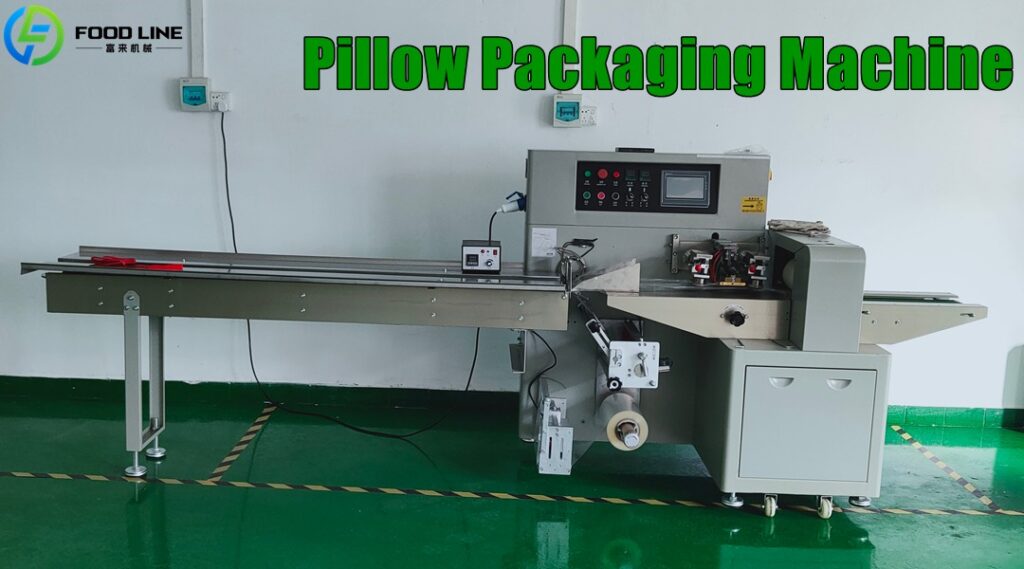

pillow packaging device
Advantages of Pita Bread Making Machines
High production efficiency. The equipment’s speed and output can be adjusted according to order requirements.
Standardized product specifications facilitate procurement by chain restaurants and large supermarkets.
Reduces manual processing steps, lowering costs.
Fast packaging speed and neat packaging appearance facilitate transportation and retail.
Adjustable equipment parameters can adapt to different product types, sizes, and packaging methods.
About Foodline
Foodline is a food machinery company with 20 years of experience. We will develop a customized solution based on your factory area, voltage specifications, and budget. Besides pita bread, we can also make tortillas, frittatas, and tacos by changing our equipment. Welcome to get a quote! WhatsApp/Phone: +86 138 3838 5752
