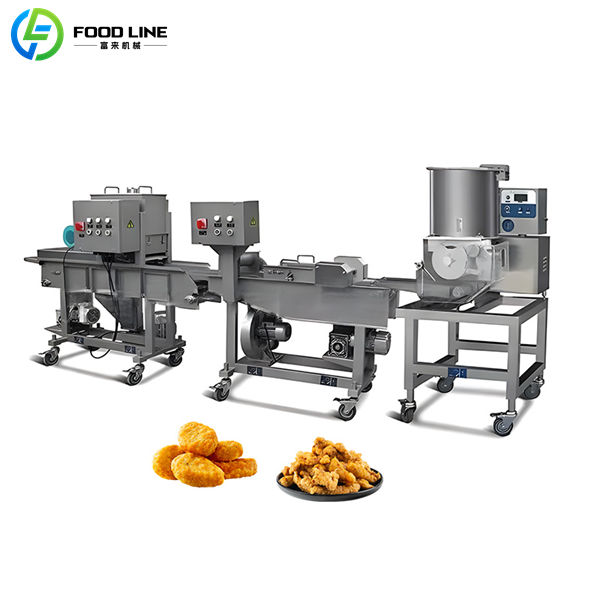

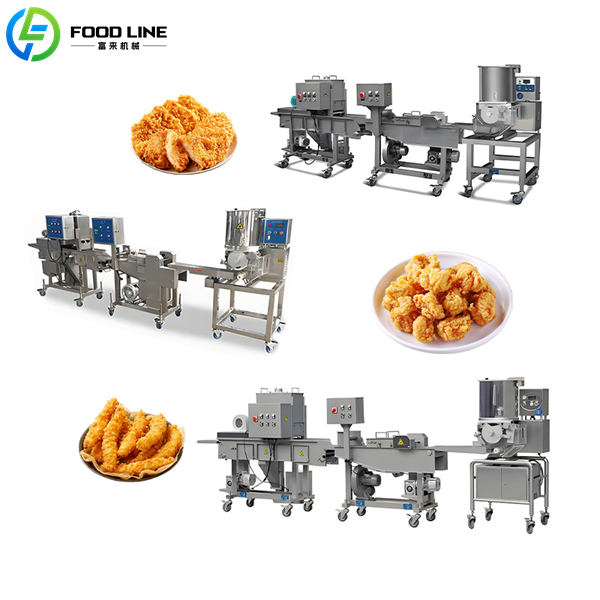

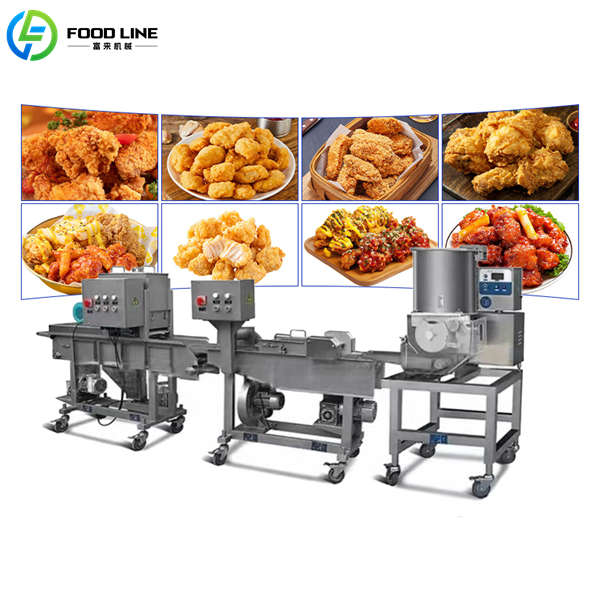

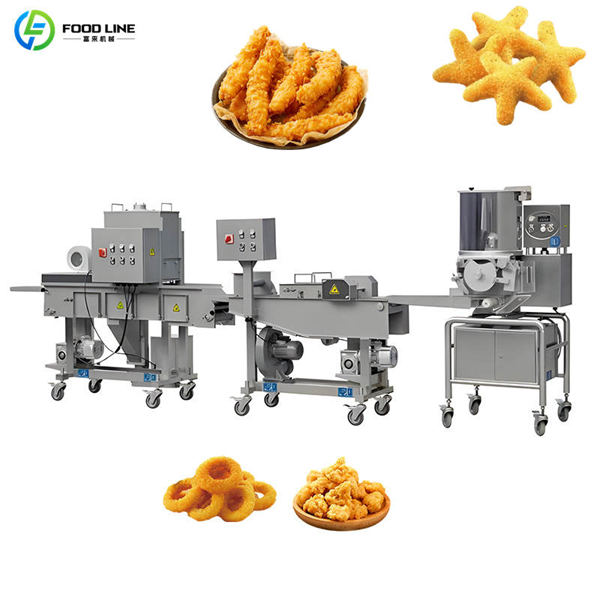

Automatic Continuous Frying Chicken Nugget Production Line

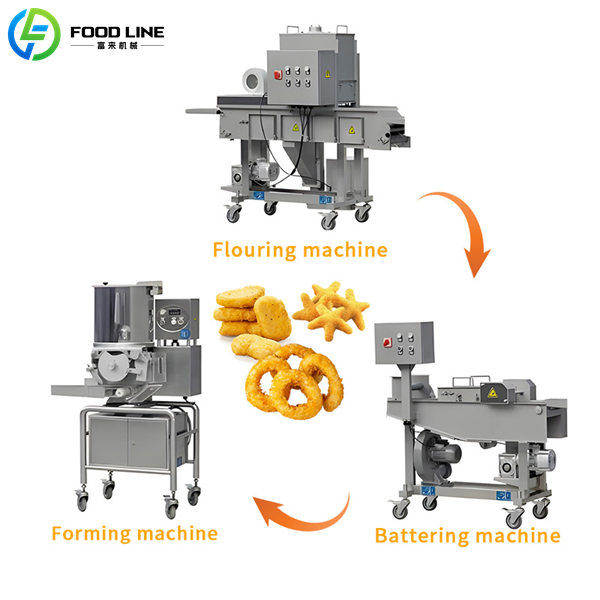

Production Process

Raw Material → Forming → Battering → Powder Coating → Breading → Continuous Frying → Oil Draining → Cooling → Packaging

Single Machine Features & Parameters

Automatic Forming Machine

Provides accurate and consistent shaping; supports quick mold replacement; weight error ≤1%.

Model	Belt Width	Capacity	Product Thickness	Power	Dimensions
FL-300	300mm	100–300kg/h	6–25mm	5.6kW	2520×720×1980mm
FL-400	400mm	200–600kg/h	6–25mm	11.12kW	2828×830×2136mm
FL-600	600mm	500–1000kg/h	6–40mm	15.12kW	3170×1176×2430mm

Dipping Battering Machine

Features: Ensures smooth and even batter coating; adjustable belt gap; removes excess slurry efficiently.

Model	Belt Width	Speed	Power	Dimensions
FL-400	400mm	3–18m/min	1.9kW	2350×1000×1350mm
FL-600	600mm	3–18m/min	1.9kW	3100×1200×1380mm

Drum Flouring Machine

Features: Creates uniform scaly coating; unique sieving system; easy cleaning with open-type screw.

Model	Belt Width	Speed	Power	Dimensions
FL-VII	600mm	3–18m/min	11.17kW	6000×2200×2400mm
FL-VIII	600mm	3–18m/min	10.85kW	5700×2080×2310mm

Automatic Breading Machine

Features: Applies bread crumbs evenly; low crumb breakage; efficient recycling system.

Model	Belt Width	Speed	Power	Dimensions
FL-400	400mm	3–18m/min	4.1kW	2400×800×2040mm
FL-600	600mm	3–18m/min	4.1kW	2600×1125×2040mm

Continuous Frying Machine

Features: Precise temperature control; stable frying quality; oil filtering system extends oil life.

Model	Belt Width	Heating Method	Temperature Range	Power	Dimensions
Customized	400–600mm	Electric/Gas/Steam	160–200°C	Customized	Customized

Vibrating Oil Draining Machine

Features: Quickly removes excess oil; stable running; low noise.

Model	Belt Width	Vibration Frequency	Power	Dimensions
Customized	400–600mm	Adjustable	0.75kW	Customized

Cooling Conveyor

Features: Fast air cooling; adjustable speed; stable conveying for packaging.

Model	Belt Width	Cooling Fan Power	Speed	Dimensions
Customized	400–600mm	2×0.55kW	3–18m/min	Customized

Advantages of the Continuous Chicken Nugget Frying Line

Fully Automated Operation
The whole line runs continuously with one-key control, which greatly reduces labor input and improves production efficiency.
Hygienic and Durable
All machines are made of 304 stainless steel, meeting HACCP and CE standards, with long service life and easy cleaning.
Wide Application
It can produce various meat, poultry, seafood, and vegetable fried products by adjusting molds and process parameters.
Energy Saving and Cost Reduction
An efficient heating and oil filtering system reduces oil and power consumption, lowering long-term operating costs.
Flexible Customization
Capacity, dimensions, voltage, and layout can be customized to fit different workshop conditions and production needs.

Why Choose Us?

Professional Manufacturer
We are a national high-tech enterprise with more than 10 years of experience in food machinery R&D and manufacturing, with several patented technologies.
Reliable Quality Certification
All equipment has obtained CE, ISO9001, and other international certifications, which can be sold and used worldwide.
Customized Solutions
We provide personalized design according to your output, site, and product technology to create the most suitable production line.
After-Sales Service
We provide full-process services from scheme design, production, and delivery to on-site installation and training.
