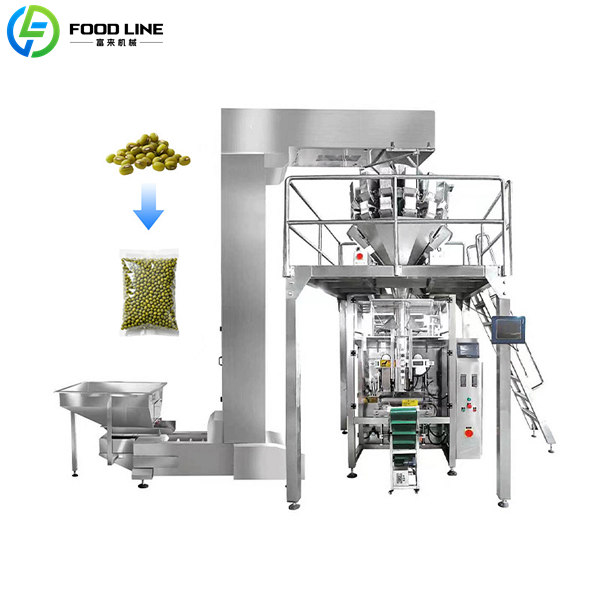

A Granule Packing Machine is a set of automatic equipment. It takes loose granule materials, weighs them, fills them into bags, seals the bags, and outputs finished packages. This line works well for the food, chemical, and pharmaceutical industries.
Manual feeding → 2. Z‑type elevator lifts material → 3. Multihead Weigher weighs → 4. Vertical packing machine makes bag and fills → 5. Sealing and coding → 6. Finished product conveyor outputs
Machine Functions and Main Parameters

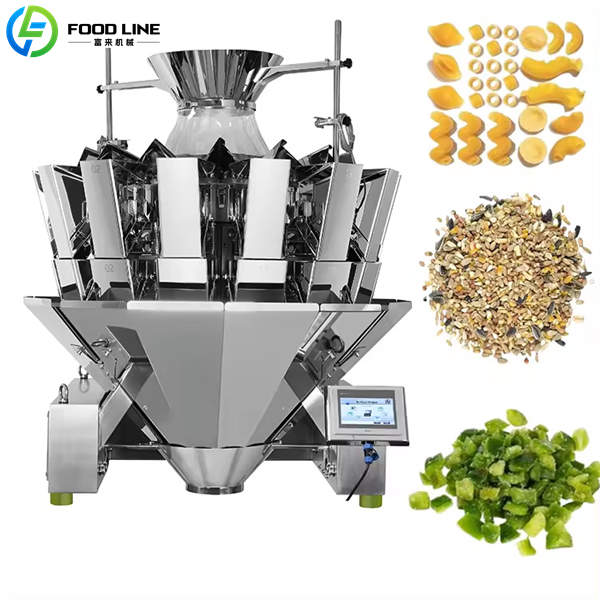

1. Multihead Weigher (14-head combination scale)
Function: Automatically weighs granule materials to make sure each bag has the right weight. It uses multiple weighing buckets to find the best combination close to the target weight. Fast and accurate.
Parameter
Value / Description
Weighing range
10 ~ 2500g
Weighing accuracy
±0.1 ~ 1.0g
Max speed
120 bags/minute
Hopper capacity
2.5L
Power
AC220V / 2000W / 50-60Hz
Machine weight
480kg

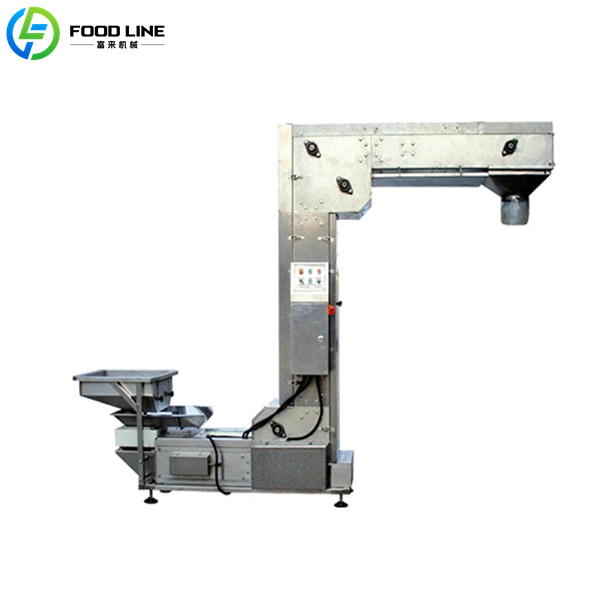

2. Z-type Bucket Elevator
Function: Lifts materials from ground level up to the weigher. The Z-shape design does not damage granules. Works well for many granule and powder materials.
Function: Automatically makes bags, fills product, seals bags, and prints codes. The machine uses PLC control and a touch screen. It supports many bag types and film materials.
Parameter
Value / Description
Film thickness
0.03 ~ 0.1mm
Max film width
420mm
Bag length
50 ~ 300mm
Bag width
50 ~ 200mm
Packing speed
10 ~ 60 bags/minute
Air pressure
0.65MPa
Power
380V / 50-60Hz / 2.8kW
Machine size
1200×1020×1350mm
Machine weight
350kg

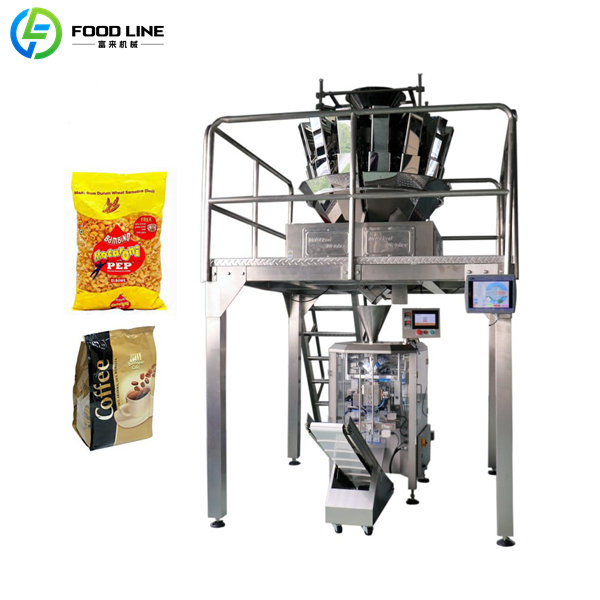

4. Working Platform
Function: Supports the multihead weigher and elevator, making it easy for operators to add materials, maintain, and clean. Made of 304 stainless steel, strong and durable.
Function: Moves sealed bags automatically to the next step or collection area. Reduces manual handling and improves efficiency.
Parameter
Value / Description
Conveying speed
30 m/min
Voltage
220V / 50Hz
Power
40W
Dimensions
1600×520×1000mm
In this equipment set, the High Quality Multihead Weigher Packing Machine gets the most attention from customers, because it determines the packing accuracy and speed. If you need higher speed or a larger weighing range, we also offer the Automatic 14-head Weigher machine and the Multihead Combined Weigher.

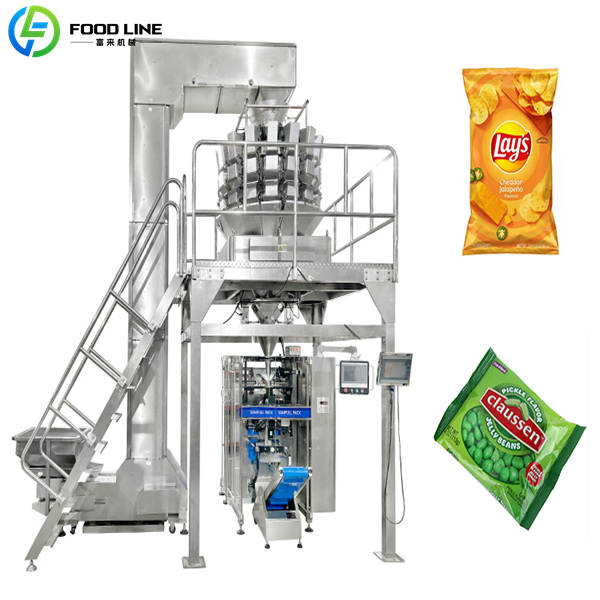

Features Fully Automatic Granule Packing Line
High weighing accuracy The Multihead Weigher uses high-accuracy sensors and smart combination algorithms. Weighing accuracy can reach ±0.1g. Even for granules of different sizes, each bag has the same weight.
Fast packing speed, high output The multihead weigher runs up to 120 times per minute. Together with the vertical packing machine, the whole line runs steadily at 10–60 bags per minute. One line can produce tens of thousands of bags per day, meeting large orders.
Fully automatic, less manual work From lifting, weighing, bag making, filling, sealing to output, the PLC controls everything automatically. Workers only need to add materials and monitor the machine.
Works with many materials Whether you have free‑flowing materials like peanuts and rice, or fragile items like potato chips and puffed snacks, the line handles them gently. You can change the bag form to switch bag widths.
Advantages of High Quality Granule Packing Line
Reduces material waste: High-accuracy weighing avoids giving extra product in each bag. For example, if you overfill 2 grams per bag and produce 50,000 bags per day, that wastes 100 kg of material per day, 3 tons per month.
Flexible Productionles: Whether you need small 50g sample bags or large 25kg feed bags, you can produce them on the same line.
Easy production management: The PLC automatically records output, running time, fault alarms, and more. Managers can check production data anytime. It can also connect to your factory ERP system for digital management.
Safe and environmentally friendly: The equipment has safety guards and doors. Opening a door stops the machine. Low noise, no dust leakage. Meets CE and other international standards.
Pharmaceutical and health products: herbal granules, vitamin granules
Pet food: dog food, cat food pellets
FAQ
Can you test my material before I buy?
Yes. You can send us your material. We will run a test and send you a full video. You can also come to our factory to see the test in person.
If I want to change my bag width later, do I need to buy a new machine?
No. You just need to buy an extra bag for the new width (about 3,000 RMB). Then we change a few settings on the packing machine.
Can this line connect to my existing downstream equipment?
Yes. Our finished product conveyor has adjustable height and speed. It can connect to your checkweigher, metal detector, cartoner, case packer, palletizer, etc.
What if the machine breaks down? How long is the warranty?
We offer a one-year warranty. During that time, we sent free replacement parts for any non-human damage
We focus on granule packing equipment. Our technology is mature and reliable. Our engineers have served hundreds of customers in food, chemical, pharmaceutical, feed, and other industries.
Transparent pricing
Because we own our factory – no middlemen. We provide a detailed quotation with every item listed.
Customization supported
We can customize for your special needs: explosion-proof motors, food-grade polishing, Teflon coating, pattern plates, higher platforms, special colors, multi-language screens, your logo, etc.
Free material test
You can send us your material. We test it for free and send you a full video. You see the machine working with your product before you place an order.
We offer not only the Multihead Weigher and a complete granule weighing & packing line, but also a counting & filling line, hydraulic baler, vacuum packaging machine, and modified atmosphere packaging machine. Whatever your packaging needs, we have a solution. If you want a solution and a quote, contact us now!
